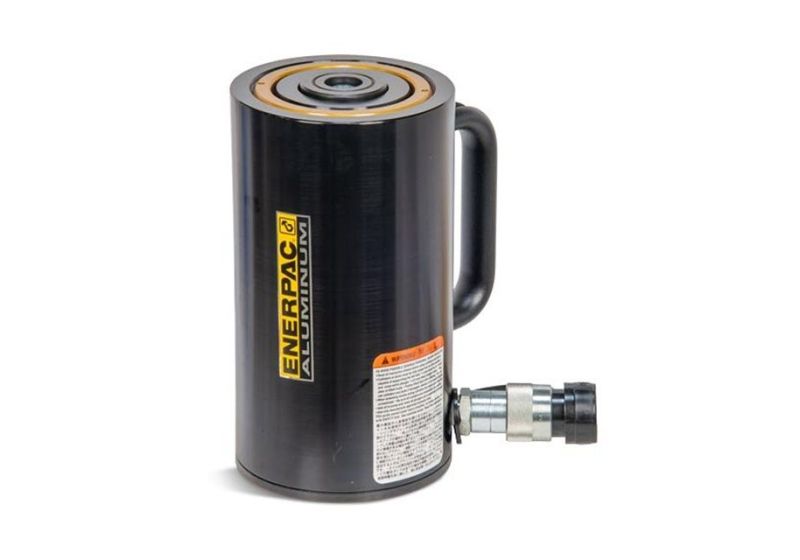

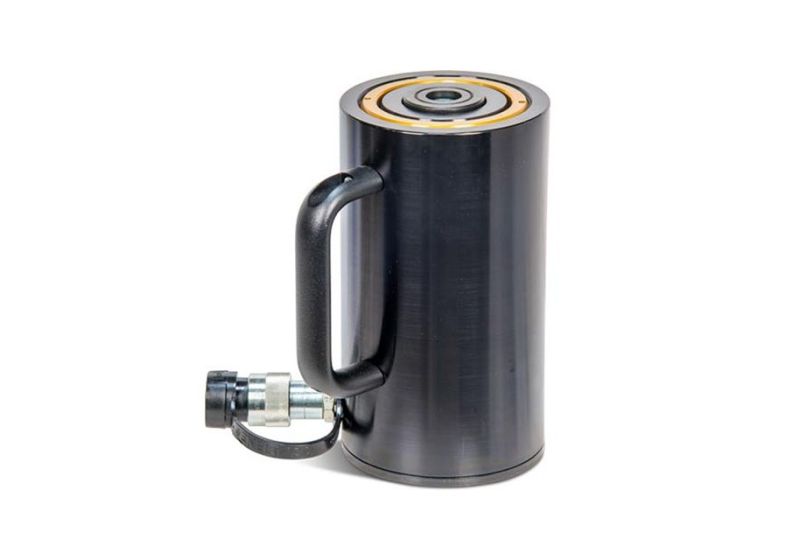

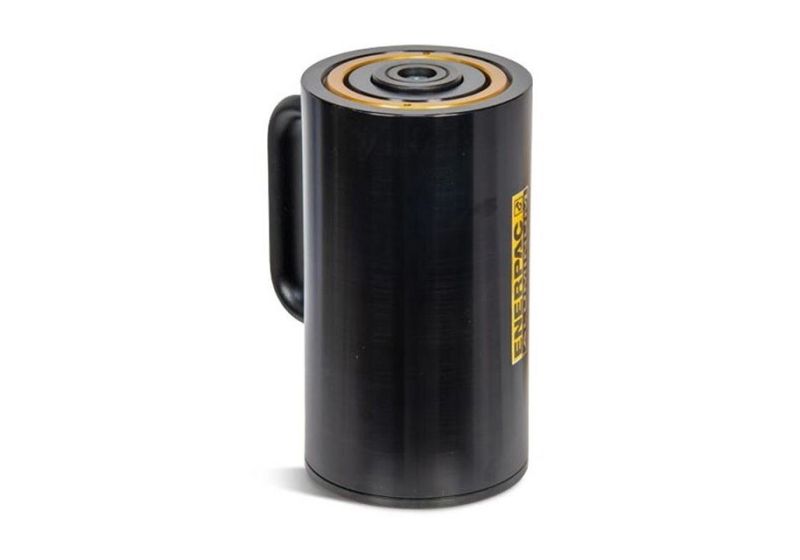

ENERPAC General Purpose Hydraulic Cylinder 50 ton RAC504

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 75 tons
• Available in 10-150 tons
• Oil tank capacity: 187 mm
• Length in closed mode: 79 mm
• Length in open mode: 96 mm
• Shaft diameter: 100 mm
• Weight:12.7 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 933 kn
• Stroke 333 mm
• Collapsed Height 524 mm
• Extended Height 857 mm
• Closed mode height: 524 mm
• Return Type : Double-Acting, Hydraulic Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance 133.3cm2
• Cylinder Effective Area Retract 62.2cm2
• Oil Capacity Advance 4439cm3
• Oil Capacity Retract 2071cm3
• Weight: 93 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 30 ton
• Stroke 209 mm
• Collapsed Height 387 mm
• Extended Height 596 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 42.1 cm2
• Oil Capacity Advance 880 cm3
• Weight : 18.1 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 75 ton
• Stroke 156 mm
• Collapsed Height 285 mm
• Extended Height 441 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 102.6 cm2
• Oil Capacity Advance 1601 cm3
• Weight : 29.5 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 109 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 0.76 L
• Length when the shaft is closed: 189 mm
• Designed for use in all situations
• High build quality
• Made in USA
• Contact us for more information

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• Cylinder power : 15 tons
• Hydraulic jack height closed: 190 mm
• Hydraulic jack height open : 355 mm
• Piston height of this hydraulic jack : 100 mm
• Made with high quality
• Weight :12 kg
• Made in Iran
• Contact us for more information.

Hydraulic Jack

Information:

• Maximum working pressure 700 bar
• Capacity Class 50 t
• Maximum Cylinder Capacity Advance 496kn
• Stroke 100 mm
• Collapsed Height 236mm
• Extended Height 336mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Oil Capacity Advance 709cm3
• Weight: 9.8 kg
• Made in USA
• After-sale services
• Contact us for more information
