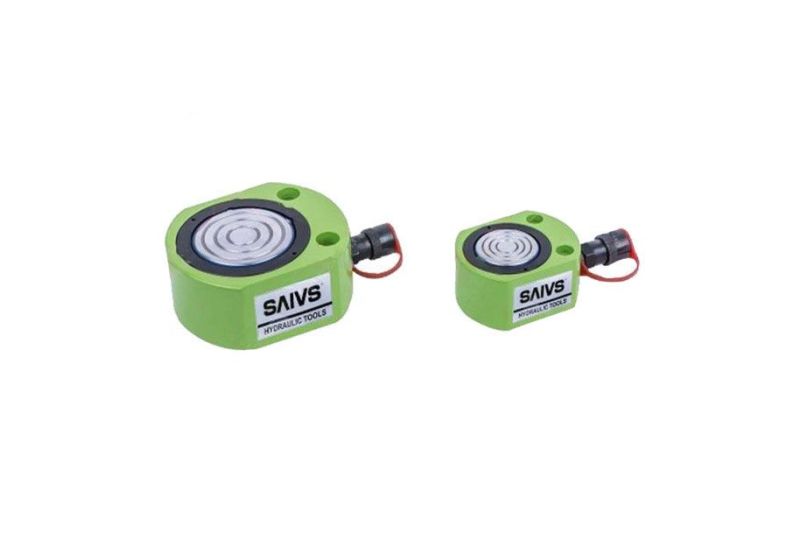

Flat Hydraulic Jack 75 tons

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 50 tons
• Oil tank capacity: 170 Square centimeters
• Maximum working pressure: 700 bar
• Length in closed mode: 67 mm
• Length in open mode: 82 mm
• External diameter: 140 mm
• Weight: 6.6 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 100 tons
• Oil tank capacity: 200 cc
• Length in closed mode: 92 mm
• Length in open mode: 100 mm
• Dimensions: 10*17*25 cm
• Weight: 14 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 933 kn
• Stroke 333 mm
• Collapsed Height 524 mm
• Extended Height 857 mm
• Closed mode height: 524 mm
• Return Type : Double-Acting, Hydraulic Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance 133.3cm2
• Cylinder Effective Area Retract 62.2cm2
• Oil Capacity Advance 4439cm3
• Oil Capacity Retract 2071cm3
• Weight: 93 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Hydraulic jack is a device in which a force is applied to the oil contained in a small cylinder, which is used to lift objects
• Working pressure: 700 bars
• Power range: 5-150 tons
• Oil tank capacity: 4-722 cm
• Closed mode length: 32 mm
• Total length: 198 mm
• High build quality
• Made in long and short lengths
• Corrosion resistant
• Effective area: 6.5-198.1 cm
• Hydraulic system
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 10 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 440 cm
• Length when the shaft is closed: 379 mm
• Designed for use in all situations
• High build quality
• Weight: 6.2 kg
• Made in USA
• Contact us for more information
