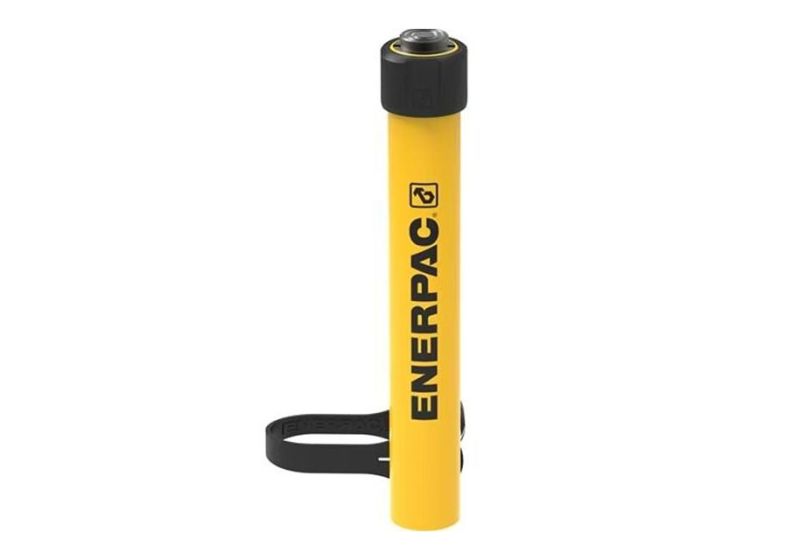

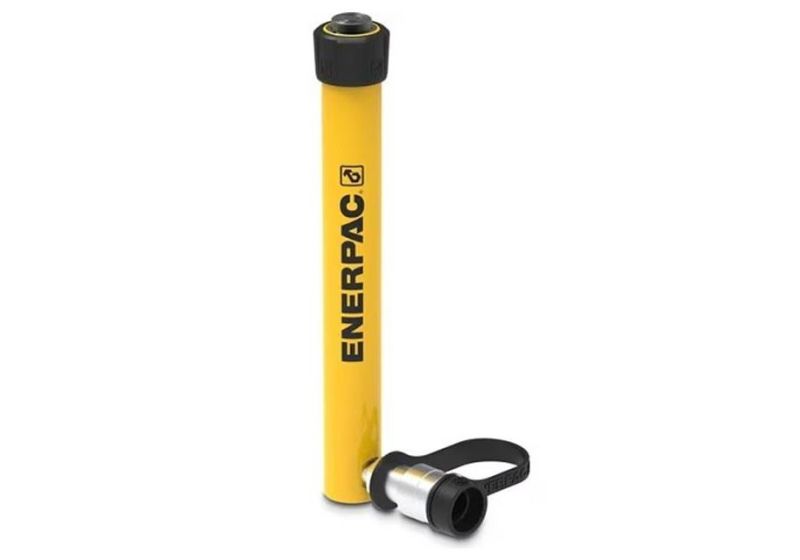

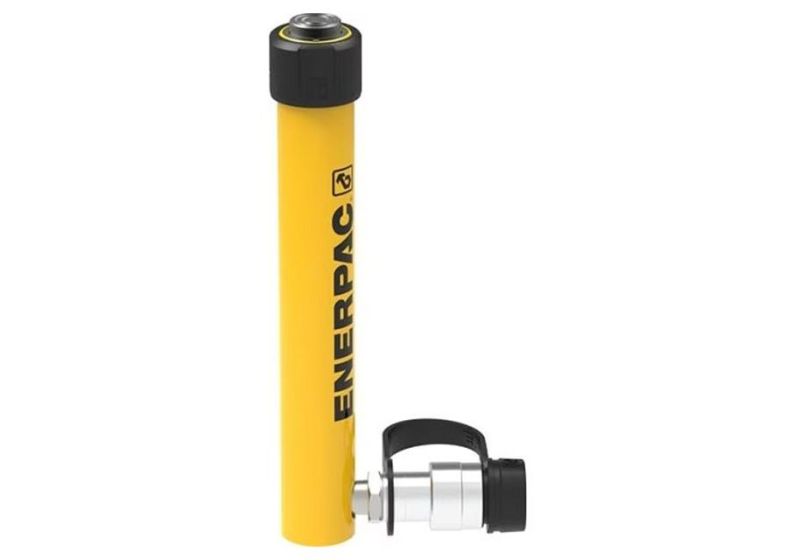

ENERPAC General Purpose Hydraulic Cylinder 10 tons RC1010

Hydraulic Jack

Information:

• Hydraulic jack is a device in which a force is applied to the oil contained in a small cylinder, which is used to lift objects
• Working pressure: 700 bars
• Power range: 5-150 tons
• Oil tank capacity: 4-722 cm
• Closed mode length: 32 mm
• Total length: 198 mm
• High build quality
• Made in long and short lengths
• Corrosion resistant
• Effective area: 6.5-198.1 cm
• Hydraulic system
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Hydraulic jack is a device in which a force is applied to the oil contained in a small cylinder, which is used to lift objects
• Power range: 20-100 tons
• Hole center diaphragm: 27-80 mm
• Closed mode length: 160 mm
• Total length: 250 mm
• High build quality
• Made in long and short lengths
• Corrosion resistant
• Available in 8.4-54.5 kg weights
• Hydraulic system
• Made in China
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 550 kn
• Stroke 150 mm
• Collapsed Height 264 mm
• Extended Height 414 mm
• Return Type : Single-Acting, load Return
• Material : steel
• Cylinder Effective Area Advance 78,5 cm2
• Oil Capacity Advance 1178 cm3
• Weight : 27 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 100 tons
• Working pressure: 42.2 Mpa
• Available in 100-6000 tons
• Lifting size: 41 mm
• Length when the shaft is closed: 330 mm
• High build quality
• External diameter: 146 mm
• Weight: 33 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50 ton
• Maximum Cylinder Capacity Advance 498 kn
• Stroke 51mm
• Collapsed Height 176 mm
• Extended Height 227 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 71.3 cm2
• Oil Capacity Advance 362 cm3
• Weight : 15 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 30 ton
• Maximum Cylinder Capacity Advance 358kn
• Stroke 100mm
• Collapsed Height 267mm
• Extended Height 367 mm
• Center Hole Diameter 34mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 51.1cm2
• Oil Capacity Advance 511cm3
• Weight : 9.5 kg
• Made in USA
• After-sale services
• Contact us for more information
