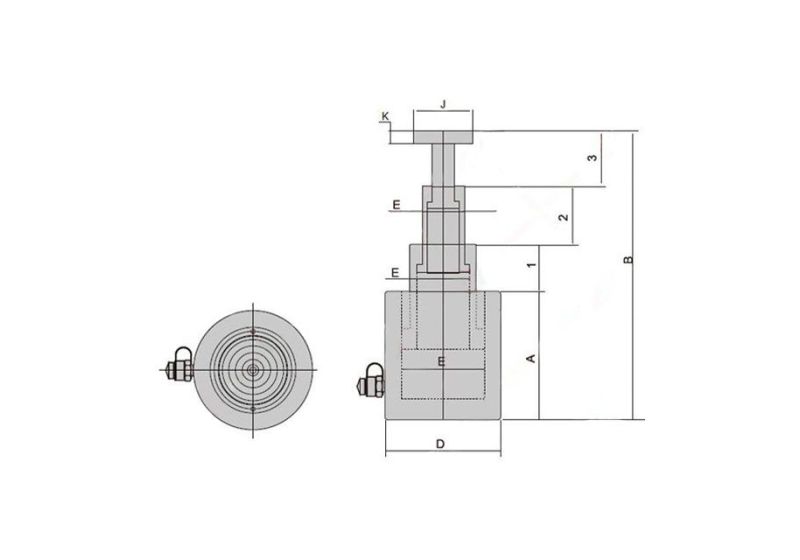

RSCO telescope hydraulic cylinders HCT2-10

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information
