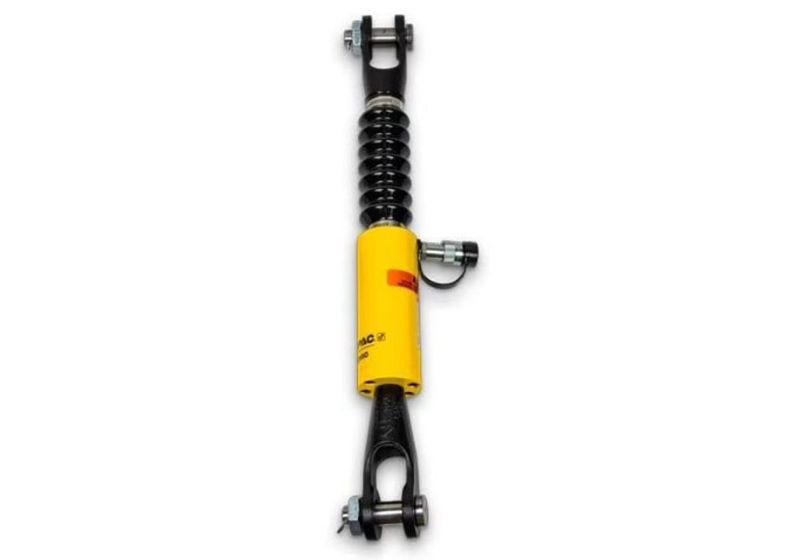

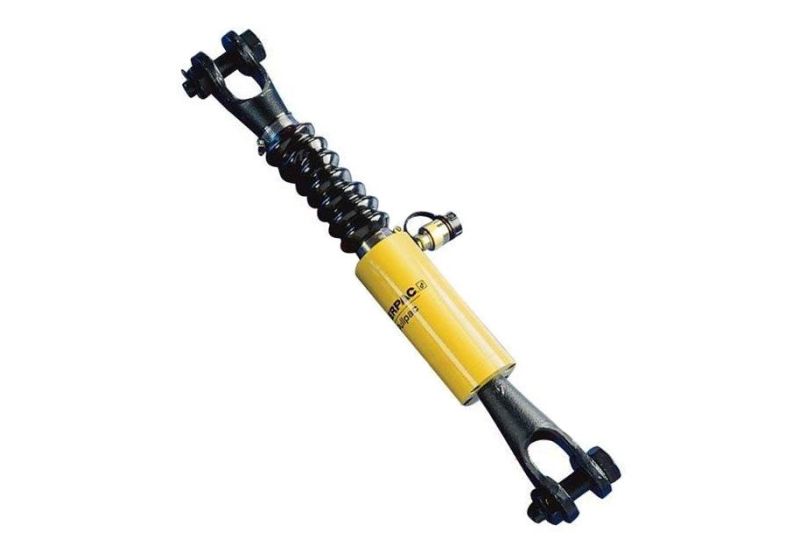

ENERPAC Pull Hydraulic Cylinder BRP106C

Hydraulic Pull Jack

Information:

• To lift objects using its oil power in the tank
• Working pressure: 700 bars
• Power: 30 tons
• Closed mode height: 672 mm
• Length: 825 mm
• Oil tank capacity: 636 cm
• High build quality
• External diameter: 105 mm
• Weight: 31 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 1000 ton
• Maximum Cylinder Capacity Advance 10644 kn
• Stroke 250 mm
• Collapsed Height 684 mm
• Extended Height 934 mm
• Return Type : Single-Acting, load Return
• Material : steel
• Cylinder Effective Area Advance 1520.5 cm2
• Oil Capacity Advance 38013 cm3
• Weight : 1360 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 100 tons
• Oil tank capacity: 200 cc
• Length in closed mode: 92 mm
• Length in open mode: 100 mm
• Dimensions: 10*17*25 cm
• Weight: 14 kg
• Made in China
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using its oil power in the tank
• Power: 100 tons
• Has a hole in the middle of the corresponding piston
• Oil tank capacity: 2174 cm
• High build quality
• Maximum working pressure: 700 bars
• Length: 386 mm
• Equipped with steel base to protect against overload
• External diameter: 213 mm
• Weight: 90 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50t
• Maximum Cylinder Capacity Advance 496 kn
• Stroke 150mm
• Collapsed Height 301 mm
• Extended Height 451 mm
• Return Type Double-Acting, Hydraulic Return
• Plunger Type : solid
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Cylinder Effective Area Retract 26.7cm2
• Oil Capacity Advance 1063cm3
• Oil Capacity Retract 401cm3
• Weight: 14.3 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 30 ton
• Stroke 209 mm
• Collapsed Height 387 mm
• Extended Height 596 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 42.1 cm2
• Oil Capacity Advance 880 cm3
• Weight : 18.1 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 75 ton
• Stroke 156 mm
• Collapsed Height 285 mm
• Extended Height 441 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 102.6 cm2
• Oil Capacity Advance 1601 cm3
• Weight : 29.5 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat
