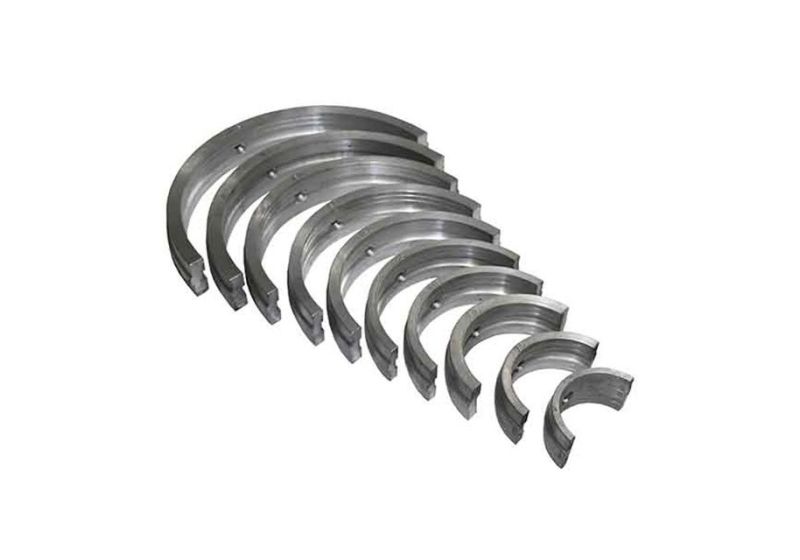

HDPE pipe welding machine internal jaws

دسته بندی : HDPE pipe welding machines

HDPE pipe welding machine internal jaws

Information:

  • Made of aluminium .
  • In sizes of 50-63-75-90-110-125-140-160-180-200-225-250-280-315-355-400-455-500-550-630-710.
  • Includes different grooves depending on size and model.
  • Trimmed by CNC device.
  • Including CE and ISO standard.
  • Contact us for more information.
Add to wishlist
Add to compare0
Product Details

Data sheet

Name
HDPE pipe welding machine internal jaws
Size
In sizes of 50-63-75-90-110-125-140-160-180-200-225-250-280-315-355-400-455-500-550-630-710.
Function system
manual
Production material
aluminium
Machined by
CNC
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
Made in
Iran
Description

HDPE pipe welding machine internal jaws

Information:

  • The alloy of the internal jaws is aluminium.
  • These jaws are in different size depending on the machine.
  • The working system of this device is manual.
  • HDPE pipe welding machine is used for transition lines of sewage , oil and gas.
  • In welding connection the quality of welding depends on welder being professional and the quality of the welding machine , equipement and following the rules.

Welding for pipes and connection of HDPE are done edge to edge:

  • First pipe is put in two jaws of the machine then we set the requirements and close the template.
  • Grating sheet is put between pipes and cleans the edges of pipes then it is taken off.
  • Butt fusion got to the suitable temprature (210-220 C) when you put between pipes head of pipes will stick together .
  • Raise the pressure based on instructions so in the touching point there is bulge with suitable size.
  • Then the pressure will lessen and inner layers will melt in conneting area.
  • The moving part of welding machine will set back, without harming the welding surface.
  • Heads of pipes will attach slowly and the pressure will raise and untill it cools down it will be kept still.
  • The time of cooling down depends on thickness of the pipes in this period connection point should not be under unauthorized pressure.
  • Edge of welding should be in two bulges , making this bulge shows that the welding was done smoothly.

Size of HDPE pipe welding machine:

  • HDPE pipe welding machine 160
  • HDPE pipe welding machine 250
  • HDPE pipe welding machine 315
  • HDPE pipe welding machine 400
  • HDPE pipe welding machine 630
  • HDPE pipe welding machine 800
  • HDPE pipe welding machine 1200

Models of Rsco HDPE pipe welding machine:

  • HDPE pipe welding machine full manual
  • HDPE pipe welding machine semi hydraulic
  • HDPE pipe welding machine hydraulic
  • HDPE pipe welding machine full hydraulic
  • Sewage PE pipe welding machine

Rastegar repairs the following products:

  • Repair of polyethylene welding machine.
  • Repair of polyethylene welding iron.
  • Green Green Foam Repair.
  • pex pipe press repair.
  • Repair of pex pipe-loaded press.
  • Five-layer tube press repair.
  • Hydraulic press repair of pex pipe.
  • pex manual press repair.
  • Repair the welding machine inverter.
  • Repair leak detectors.
  • Repair for plumbing test devices.

More information on Rsco products:

  • The industrial steamer is used to block all types of pipes and fittings in water and wastewater, oil, gas and petrochemicals.
  • The wind turbine has the ability to test the pipe.
  • Hand-operated stapler for testing all types of polyurethane, polyethylene and PVC pipes.
  • The handpiece is capable of tapping all types of pipe fittings.
  • Pipe fitting wrench is used to keep all types of ductile pipes.
  • The Rossabor copper tube has the ability to cut all kinds of copper and aluminum pipes.
  • Welding equipment of PE is a pe pipe and polyethylene fittings.
  • Polyethylene pipes can be welded to the welded polyethylene resin boiler.
  • Green Iron Pipe Iron, White Iron Iron, Ironing Pipe, Ironing Plumbing) is a device for carrying out the piping of green or plastic pipes.
  • These green tubes can be cut with industry-saving green scissors (or scissors, tube cutters, pipe cutter).
  • The polyethylene welding iron has a polyethylene tube and polyethylene fittings.
  • The Industrial Pump Test Machine has been designed with a unique design, light weight to test and test the piping of pipelines and reservoirs.
  • Industrial Company is able to repair the water piping test machine. So you can refer to the office of Industry for the repair of the water pipe testing machine.
  • To leak the pressure pipes, we introduce the industry-leading mini-leak detector. The industry has gas leak detectors.
  • pex pipes, which can be pressed with pex pipe presses (pex pipe presses, pex pipe hydraulic presses, pex pipe presses, pex pipe presses), one of the most modern plumbing systems.
  • The first layer of the pex pipe, which can be pressed by pressing the pex pipes of the industry. Which forms the outer surface of the layer.
  • To repair the pex pipe presses you can refer to the office of Rastgar Industry. Because is capable of repairing pex pipe presses.
  • The task of the outer layer of a pex pipe is to protect and maintain a self-contained pex pipe (which can be emitted by a pex pipe).
  • The outer layer of this pex pipe (which can be bended by a pex pipe bending spring). This layer creates adhesion between the layer between the outer layer and the third layer.
  • The third layer of the pex pipe(which can be riveted by the five-layer pipe piercing) is very thin aluminum.
  • The task of the third layer of the pipe is the pex control of the temperature or the temperature of the current water in the five-layer pipe (which can be bended by the pipe of the five-layer pipe, the industry is bending these tubes)
  • And the tube retainer against the deformation of the five-layer pipe (which can be used to open the tube from the five-layer pipe open roller) is extremely high temperatures.
  • It should be noted that it can be detected by the hand leak detector to detect pipe fractures.
  • To test the pipes after the completion of the plumbing When the pipes are filled with water, after testing them and closing the span, we test the pipes by the industry pump testing machine.
  • It is worth mentioning that metal pipes and galvanized pipes are also used today to be used for manual handling of electrical pipes.
