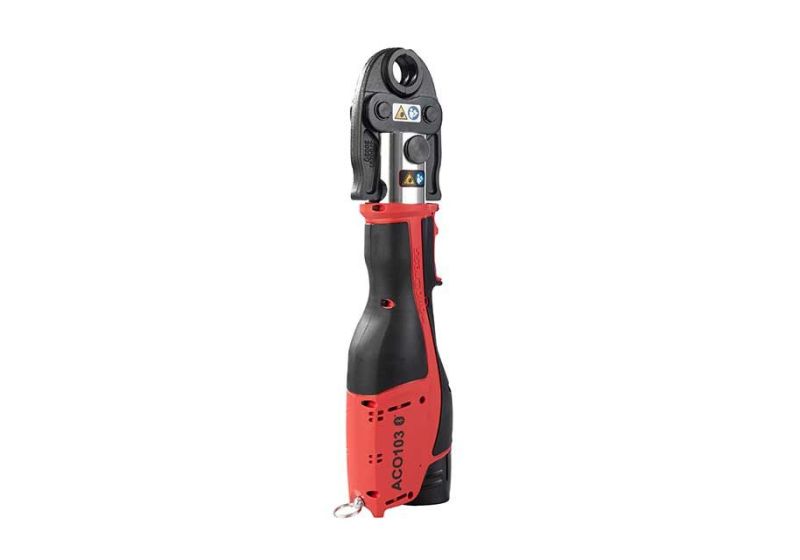

NovoPress Battery powered pipe press ACO103

NovoPress Battery powered pipe press

Information:

  •  Implemented bluetooth® technology in which device-related data can be requested via the NovoCheck app.
  •  LED- display that gives information about the battery status and provides insights into potential fault indications of the press tool.
  • One-hand operation, safe operations, even in difficult installation situations.
  • Easy and safe installation.
  • Illumination of the press area.
  • Automatic pressing cycle.
  • Status indication with LED display.
  • Electronic bolt retention.
  • Analysis of the pressing tool performance via NovoCheck app.
  • Dimensions metal pipe: up to 35 mm.
  • Dimensions plastic pipe: up to 40 mm.
  • Weight: 1.6 kg.
  • Length: 320 mm.
  • Width: 98 mm.
  • Height: 72 mm.
  • The pressable weight: up to 7000 kg.
  • Power consumption: 240 W.
  • Piston force: 19 KN.
  • Piston stroke: 30 mm.

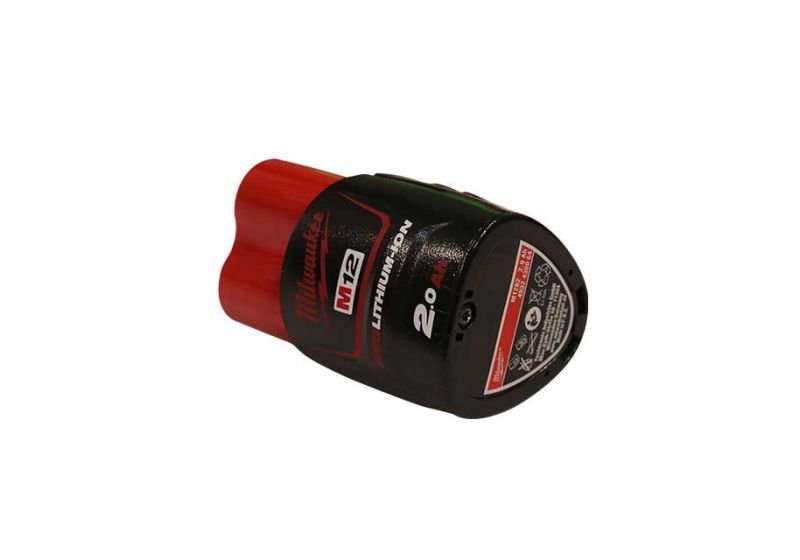

  • Battery: M12™ Milwaukee® battery system (all Milwaukee® capacities in the market can be used).
  • Battery capacity: up to 250 Press cycles (depending on dimension, material and battery capacity).
  • Charging time: 45-75 min (depending on battery capacity).
  • Four-stage brushless electric motor from Germany.
  • Made in Germany.
  • 1-year warranty and 5-year after-sale service.
  • Contact us for more information.
Read moreShow less
Product Details

Data sheet

Name
NovoPress Battery powered pipe press
Device Model
Size
metal pipe 35 , plastic pipe 40 mm
Crimping size
Power
240 W
Function system
Warranty
One year
Quality rating by Rastegar Sanat from 0 to 100
80
Shipping Box
Yes
After-sale services
10 years
Made in
Germany
Weight
1,7 kg
Overall length
320 mm
Dimensions
320 * 98 * 72 mm
Battery
12V Li-Ion 1,5 / 3,0 Ah
Battery capacity
40-180 Press cycles
Charging time
approx. 30 / 60 min.
Piston force
19 kN
