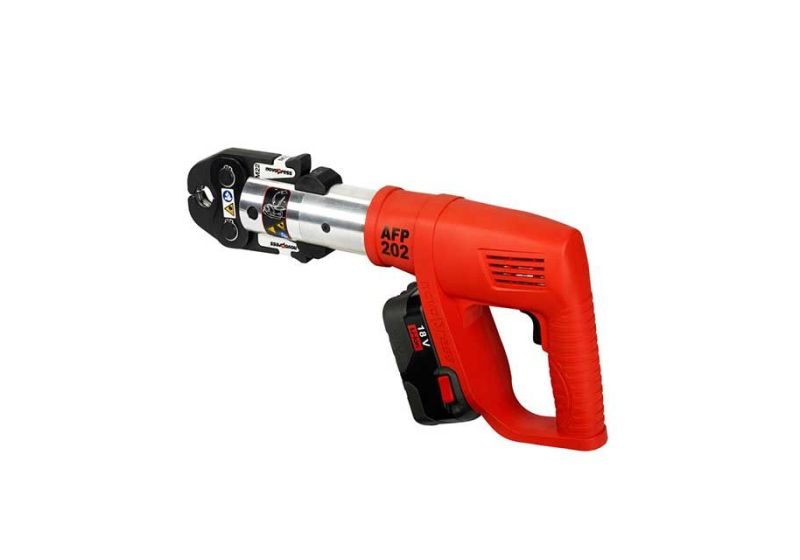

NovoPress rechargeable pex pipe press AFP202

NovoPress pex pipe press

Inforamtion:

  • The capability to press plastic and metal pipes.
  • A steady and reliable performance even without the electronic controls and the microprocessor
  • Dimension : 240*85*385mm
  • Piston force: 32 KN
  • Ability to press steel pipe  size 54 mm and plastic pipe 110 mm
  • Resistant design and high strength
  • Easy to carry because of light weight
  • weight: 3.9 kg
  • Power consumption: 450 W
  • Made in Germany
  • 1 year warranty and 5-years after-sales service.
  • Service will be done under 48 hours.
  • Rastegar Sanat Company ( R.S.Co) provides service and repairment for neighboring countries.
  • Contact us for more information.
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
NovoPress rechargeable pex pipe press
Device Model
AFP202
Size
steel pipe 54mm and plastic pipe 110mm
Crimping size
16-110mm
Power
450 W
Function system
rechargeable
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
80
After-sale services
5years
Made in
Germany
Weight
3.9kg
Overall length
385 mm
Dimensions
385 * 85 * 240 mm
Battery capacity
50 / 110 pressing cycles
Charging time
approx. 65 min. / 100 min
Piston force
32 kN
