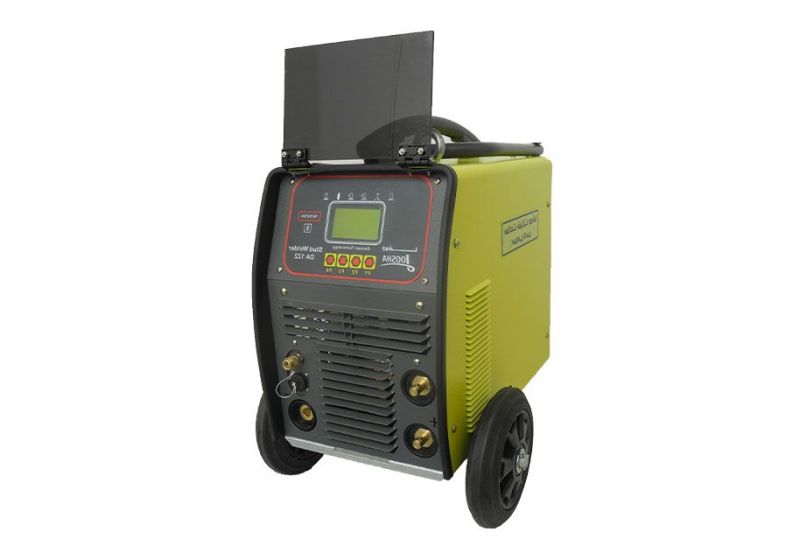

CO2 Welding Machine Stud Welder DA 122

CO2 Welding Machine

Information:

  • To convert the AC input to DC current
  • Stud welder model DA161 is suitable for high quality welding of stainless steel
  • Maximum output current: 900 amp
  • Ability to set important welding parameters synergistically or manually
  • MMA mode
  • Display for preset welding parameters
  • Protection against temperature rise or increasing in the number of welded screws per minute
  • Number of welding screws: 12 screws 11 mm per minute
  • Rated input power: 55 KVA
  • Weight: 56 kg
  • Dimensions: 46*30*55 cm
  • Manufacturer: Joosha
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
CO2 Welding Machine
Device Model
DA122
After-sale services
10 years
Function system
electrical
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
80
Shipping Box
available
Made in
Iran
Weight
56 kg
Dimensions
46*30*55 cm
برق مورد نیاز دستگاه
3phases
آمپر خروجی
900A
نوع جوشکاری
electrode(MMA),(STUD),argon(TIG)
Reviews (0)

No customer reviews for the moment.

You may also like
$426.60

RSCO CO2 Welding Machine

Information:

  • For welding by various types of copper and aluminum welding wires
  • Power: 50-250 amp
  • Protection class: IP21S
  • Insulation class: F
  • Voltage: AC380±15%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Needs a gas capsule
  • Rated input power: 8.4 KVA
  • Power factor: 0.93
  • Power, speed, output voltage, etc. volumes
  • Automatic disconnect and reconnect system
  • Accessories: torch and cable, ground cable and cramp, etc.
  • Weight: 22.70 kg
  • Dimensions:530*370*600 mm
  • Miniature input fuse
  • 1-year warranty and 5-years after-sale services
  • Contact us for more information
$477.00

RSCO CO2 Welding Machine

Information:

  • For welding by various types of copper and aluminum welding wires
  • Power: 50-315 amp
  • Needs a gas capsule
  • Protection class: IP21S
  • Insulation class: F
  • Device model: MIG-280G
  • Voltage: AC380±15%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Rated input power: 8.4 KVA
  • Power factor: 0.93
  • Power, speed, output voltage, etc. volumes
  • Automatic disconnect and reconnect system
  • Accessories: torch and cable, etc.
  • Weight: 22.85 kg
  • Dimensions: 530*370*600 mm
  • Miniature input fuse
  • 1-year warranty and 5-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • Usable for bonding metals that are used in manufacturing plants and industries
  • suitable for various industries such as petrochemical industries, chemical industries, pipelines, food industries, boilers, automobiles, shipbuilding, military, space industries, metalworking, etc.
  • Output current range: 50-250 amp
  • Rated input power: 7.8 KVA
  • Input current: 35 amp
  • Power voltage: single phase - 220 volts - 50/60 Hz
  • Output voltage: 15-31V
  • Power factor: 0.93
  • Efficiency: 85%
  • Duty cycle: 60%
  • Welding wire size: 1, 1.2, 1.6 mm
  • IGBT system
  • Workpiece thickness: 0.8-5 mm
  • MigPulse welding mode with electrode welding capability (MIG/MMA)
  • Weight: 28 kg
  • Dimensions: 840*270*750 mm
  • Made in Iran
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • To convert AC input to DC current
  • Maximum output current: 450 amp
  • Ability to increase the cable length of the device interface and wire feeder
  • Cool air torch model
  • Welding wire size: 0.6, 0.8, 0.9, 1, 1.2 mm
  • Current in 100% Duty Cycle, Minimum temperature 40 degrees: MIG 380 A , MMA 380 A , TIG 410 A
  • Current in 60% Duty Cycle, Minimum temperature 40 degrees: MIG 400 A , MMA 390 A , TIG 420 A
  • Rated input power: 26.2 KVA
  • Weight: 66.5 kg
  • Dimensions: 45*81.5*93 cm
  • Manufacturer: Joosha
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • To convert AC input to DC current
  • Provides high weld quality with steel, stainless steel, and aluminum welding wires
  • Designed for heavy-duty working conditions - hot weather conditions
  • Maximum output current: 200 amp
  • MMA mode
  • Air cooling system
  • Weldable size: 0.6, 0.8, 0.9, 1 mm
  • Duty cycle: 100% (Minimum temperature 40 degrees 160 amps)
  • Duty cycle: 60%  (Minimum temperature 40 degrees 180 amps)
  • Rated input power: 9.2 KVA
  • Weight: 16 kg
  • Dimensions: 62*31*46 cm
  • Manufacturer: Joosha
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • Usable for bonding metals that are used in manufacturing plants and industries
  • suitable for various industries such as petrochemical industries, chemical industries, pipelines, food industries, boilers, automobiles, shipbuilding, military, space industries, metalworking, etc.
  • Output current range: 10-315 amp
  • Rated input power: 16.5 KVA
  • Input current: 25 amp
  • Power voltage: three phase - 380 volts - 50/60 Hz
  • Output voltage: 10-31.5 V
  • Power factor: 0.85
  • Efficiency: 85%
  • Duty cycle: 60%
  • Welding wire size: 0.8, 1, 1.2 mm
  • IGBT system
  • Workpiece thickness: 14 - 1.5 mm
  • MigPulse welding mode with electrode welding capability (MIG/MMA)
  • Weight: 82 kg
  • Dimensions: 400*220*520 mm
  • Made in Iran
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
