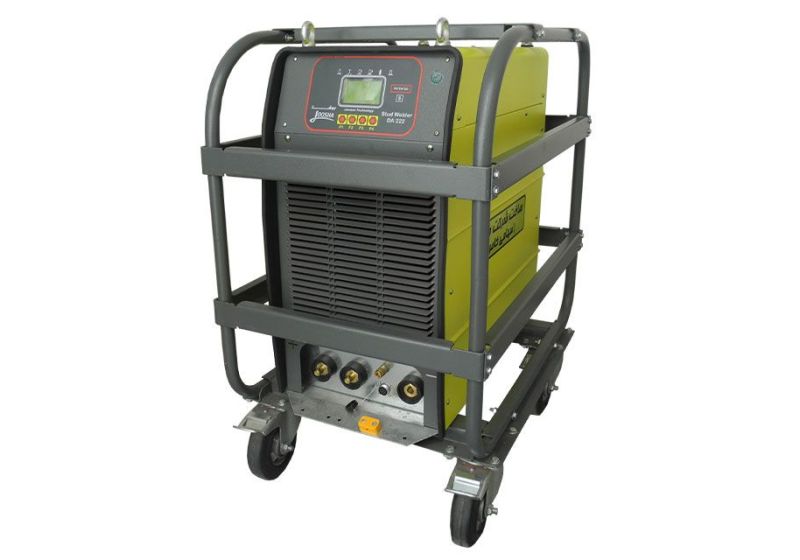

Argon Welding Machine Stud Welder DA 222

Argon Welding Machine

Information:

  • To convert the AC input to DC current
  • Suitable for welding high quality stainless steel
  • Ability to weld up to 2000A current for welding all types of studs up to size 22
  • Suitable for TIG/MMA welding modes
  • Ability to adjust important welding parameters synergistically or manually
  • Output power: 88 microfarads
  • Number of welding screws per minute: 12 mm per minute for 22 mm studs
  • Rated input power: 118 KVA
  • Dimensions:  77*36*71 cm
  • Weight: 70 kg
  • Wheeled for easy transportation
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
Argon Welding Machine
Device Model
Stud Welder DA 222
Power
118 kv.A
After-sale services
10 years
Function system
IGBT
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
85
Shipping Box
available
Made in
Iran
Weight
70 kg
Dimensions
77*36*71 cm
Wheel
available
برق مورد نیاز دستگاه
3phases
آمپر خروجی
2000A
نوع جوشکاری
electrode(MMA),argon(TIG)
