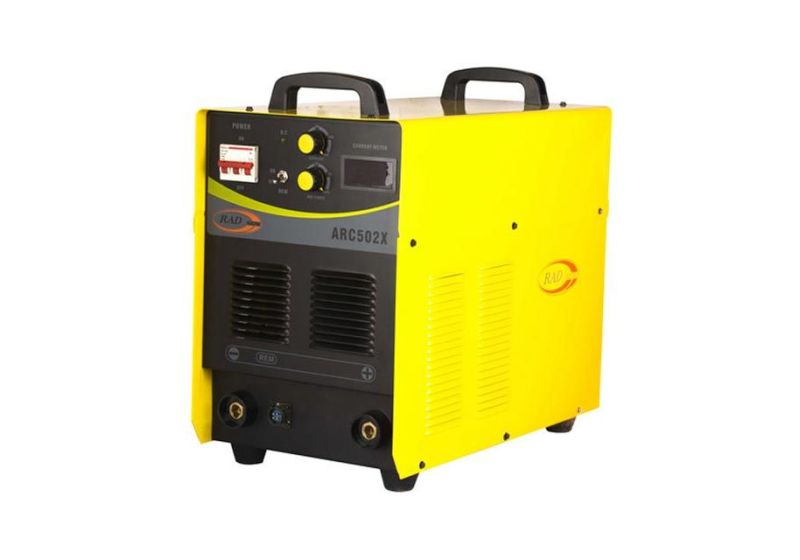

Welding Inverter Machine ARC 502 X

Brand:

Inverter Welding

Information:

Information:

To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
Working current: 20-300 amp
6 capacitors with IGBT-MOS-CC-RC technology
Input power swing cut-off system
Industrial fireproof high-pressure input power cable
Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
Weldable electrodes' sizes: 2, 2.5, 3.2, 4, 5 mm
Ability to work with single-phase, two-phase, and three-phase electricity
Miniature fuse to control the input power without interruption
Toshiba IC
Weldable electrodes: all types of penetrating electrodes, iron electrodes, cast iron electrodes
High-temperature sensor
Electrode anti-adhesion system
Voltage: 230V/380V ±15%
Frequency: 50 -60 Hz
No-load voltage: 59~74 V
Input power: 10.8 k.v.amp
Power factor: 0.73
Weight: 12.26 kg
Suitable size, lightweight, low power consumption
Accessories: refractory torch and cable, refractory ground cable and cramp, mask, combination wire brush
30-months warranty and 5-years after-sale services
ISO, SGS, and CE standards
Contact us for more information

$141.12

Information:

To weld all kinds of iron galvanized, steel, carbon steel, cast iron, and etc.
Working current: 20-220 amp
6 automatic charging capacitors
IGBT technology
Input power swing system
Industrial fireproof high-pressure input power cable
Voltage increasing in high frequency and low welding spraying technology, significant welding arc, and easy usability
Weldable electrodes' sizes: 2, 2.5, 3.2, 4 mm permanently and 5 mm cross-sectionally
Suitable size, lightweight, low power consumption
High-pressure sensor
Ability to weld penetrating electrodes cross-sectionally
Automatic arc adjustment system
3 separate electronic boards
Toshiba Japan IC
Voltage: AC220V ±20%
Frequency: 50-60 Hz
Power factor: 0.73
No-load voltage: 60 V
Input power: 7.3 kW
Weight: 7.43 kg
Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
Automatic electrode adhesion system
Miniature fuse to control the input power
Can be used in high temperatures and tropical regions
Accessories: refractory torch and cable, refractory ground cable and clamp, mask, combination wire brush
ISO, SGS and, CE standards
30-months warranty and 5-years after-sale services
Contact us for more information

$129.42

Information:

Out-of-Stock

Information:

To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
Constant current output
Suitable size, lightweight, low power consumption
Working current: 20-220 Amper
Advanced IGBT inverter technology
Industrial fireproof high-pressure input power cable
Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
Weldable electrodes' sizes: 2, 2.5, 3.2 mm
High-temperature sensor
Including refractory torch and cable, refractory ground cable and clamp
Lightweight and durable box for easy handling
Toshiba IC
Input voltage: AC220V ±20%
Frequency: 50-60 Hz
No-load voltage: 56 V
Power: 5.5 kW
Power factor: 0.73
Weight: 2 Kg
Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
1-year warranty and 5-years after-sale services
ISO, SGS, and CE standards
Contact us for more information

Out-of-Stock

Information:

To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
Current range: 20-200 Amper
Advanced IGBT inverter technology
Industrial fireproof high-pressure input power cable
Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
Weldable electrodes' sizes: 2, 2.5, 3.2 mm
High-temperature sensor
Constant current output
Suitable size, lightweight, low power consumption
Including refractory torch and cable, refractory ground cable and clamp
Toshiba IC
Working voltage: AC220V ±20%
Frequency: 50-60 Hz
No-load voltage: 56 V
Input power: 4.3 kW
Power factor: 0.73
Weight: 1.9 Kg
Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
1-year warranty and 5-years after-sale services
ISO, SGS, and CE standards
Contact us for more information
