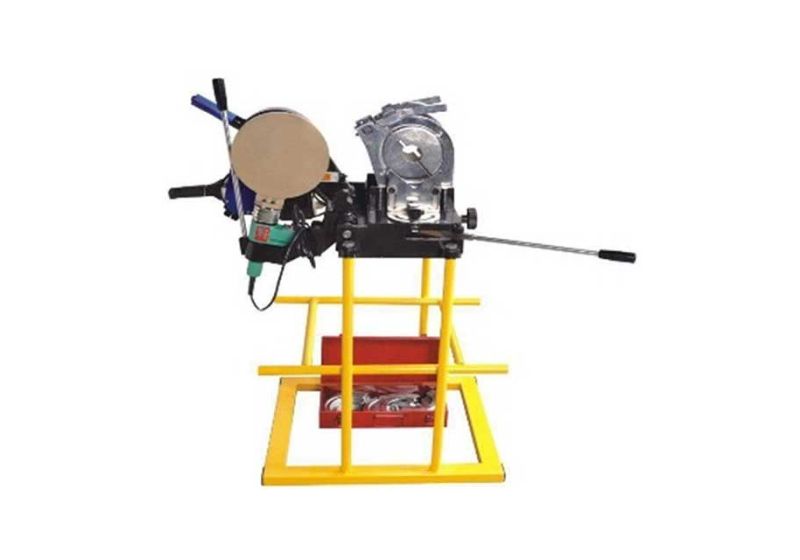

Sewage PE pipe welding machine

دسته بندی : HDPE pipe welding machines

Sewage PE pipe welding machine

Information:

  •  Welding altogether PE pipes in water supply lattices
  • Separate jaw in size: 50-160 mm
  • Includes scrapper: 500 W
  • 2000 W Electrical heater with industrial Teflon and adjustment temp 50-300 C
  • 6-months warranty and 5-years after-sale service
  • Contact us for more information.
Add to wishlist
Add to compare0
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Sewage PE pipe welding machine
Welding apparatus size
50-160 mm
Welding plate power range
2500 V Italian
Welding pressure range
2-8 times
Input voltage
220-230 V
Jaw Thickness
5 mm
Power pump type
Manual High Pressure Lever
After-sale services
5years
Warranty
6months
Accessories
included
Quality rating by Rastegar Sanat from 0 to 100
70
Calibration sheet
included
Description

Sewage PE pipe welding machine

  • Pe pipe welding machine is   for welding head of pipes in water supply networks
  • The pipes can be welded to be the same in diameter and thickness
  • We can weld PPR pipe by pe pipe welding machine
  • Welds that are outside the machine are covered by the respective caps to prevent airflow
  • Types of devices about pe pipe welding machine:
  • Full manual HDPE pipe welding machine
  • Semi-hydraulic HDPE pipe welding machine
  • Full hydraulic HDPE pipe welding machine
  • HDPE pipe manual welding machine

Types of device based on application:

  • PE pipe welding butt fusion
  • PE pipe welding electro fusion
  • PE pipe welding extroder

Complete information

  • PE pipe welding machine is used for pipe welding and PE pipe bonding,in transmission lines.
  • Welding extroder has another name like:extroder PE pipe welding,welding machine extroder,plastic welding extroder.pipe extroder,extroder pipe machine,extroder PE pipe welding.
  • This pipe extroder has ability to weld all surface like pvc grades.
  • PE pipe welding heater has ability to weld all PE pipes.
  • Pay attention to our need we have different models like electric PE pipe heater,digital PE pipe welding heater,gaseous PE pipe welding heater are available.
  • PE pipe welding machine use for metal,steel,carbonsteel,galvanized,castiron.

How to work with full manual HDPE pipe welding machine:

  • Please pay attention how to work with this machine you must follow all the key points and how to use it:
  • When you do welding don't work in rainy,snowy,cold,windy weather.
  • Do welding in the space that the temprature is more than 0 degree.
  • If the propulsion force is supplied by generator befort satart your activity check the amount of fuel because if generator going to off make the trouble during welding.
  • If the propulsion force is supplied through the generator make the parts break out it is out  of our response.
  • For doing the welding put the pipe in the place and clean up the pipe edge and trimmer the pipe.
  • After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give it time to be dry and cold.
  • After a few minutes remove the welding components from machine and let it cool.

:Steps for welding operations

  • Bring the welding machine and its accessories into working place.
  • For welding you need another person who can help you.
  • The clips of the machine are prepared according to the pipe diameter.
  • Connect the PE pipe machine to the power.
  • Place the pipes at the appropriate place and clean the edeges of the pipes.
  •  We do the grating.
  • Put the HDPE pipe welding heaters in revelant place then make a pressure until pipe edge comes up about 1-4 mm.
  • After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give it time to be dry and cold.
  • After a few minutes remove the welding components from the machine and let it cool down.

:Important recommendations on welding

  • Before welding clean up the heater.
  • Perform a trial before the main weldimg.
  • Follow all steps in the test welding.
  • The part of pipe that is  sticky can clean up the heater to be ready for next welding without dusty.
  • If the sizes of the pipes are changed then a test weld must again be performed.
  • It's best to wipe and clean underneath the welding equipment to prevent contamination and particle from making traoubles.
  • Be sure to use 10 yellow hydraulic oil.

:Information

Sewage PE pipe welding machine

  • Butt welding polyethylene pipe is used  in residential and commercial sewage.
  • Separate jaw in size: (50-160).
  • Includes scrapper: (500w).
  •  Electrical heater (2000w) with industrial Teflon and adjustment temp(50-300c.
  •  6months warranty and 5 years sale service.

Read moreShow less
