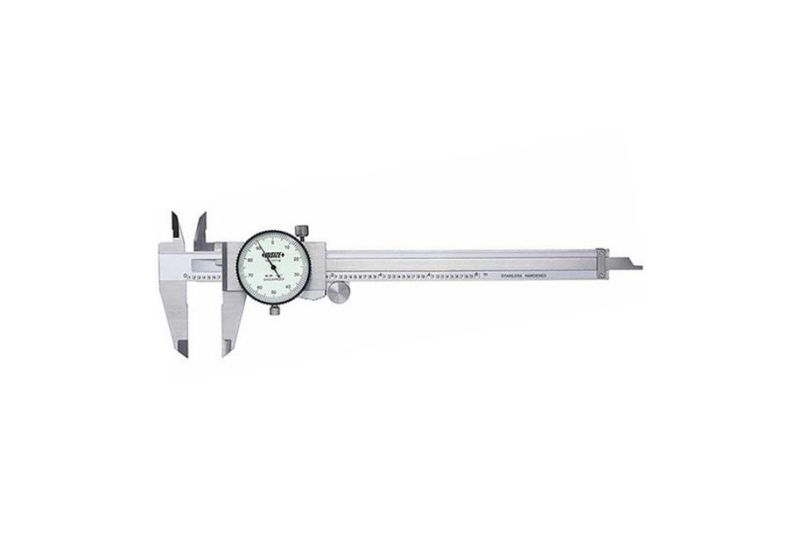

Insize Dial caliper 30 cm model A300-1312
Insize Dial caliper 30 cm model A300-1312
Insize Dial caliper 30 cm model A300-1312
Insize Dial caliper 30 cm model A300-1312
Insize Dial caliper 30 cm model A300-1312
Insize Dial caliper 30 cm model A300-1312

Insize Dial caliper 30 cm model A300-1312

Brand:
اینسایز - INSIZE

Dial caliper

Information :

  • A dial caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Measurable size: 0-300 mm
  • The body is made of strong, wear-resistant stainless steel
  • The height of the upper jaw to the fixed body is 28 mm and to the movable body is 22 mm
  • With a clock display and shockproof (graded)
  • Equipped with a thumb roller for easier use
  • With a durable box for transportation
  • Error: ±0.03 mm
  • Accuracy: 0.02 mm
  • Body length and width: 410 and 20 mm
  • Has a blade to measure depth
  • Height of the main jaw to the body: 62 mm
  • Made in China
  • Buy insize calipers at the best price on Rostgar Sanat website
  • For more information and the price of Insize hand caliper, please contact the sales office.
Read moreShow less
authenticity and physical health of the product warranty
Available in stock
هفت روز ضمانت بازگشت کالا هفت روز ضمانت بازگشت کالا
ارسال رایگان ارسال رایگان
Cash On Delivery tehran Cash On Delivery tehran
Specialized advice when shopping Specialized advice when shopping
$97.56
Delivery: 1 to 3 weeks
Product Details

Data sheet

Name
Dial caliper
Model
A300-1312
Size
0 - 150 mm
Jaws size
62 mm
After-sale services
unavailable
Function system
Dial
Production material
Steel
Measurement accuracy
0.02 mm
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
60
Shipping Box
available
Made in
China
Overall length
410 mm
