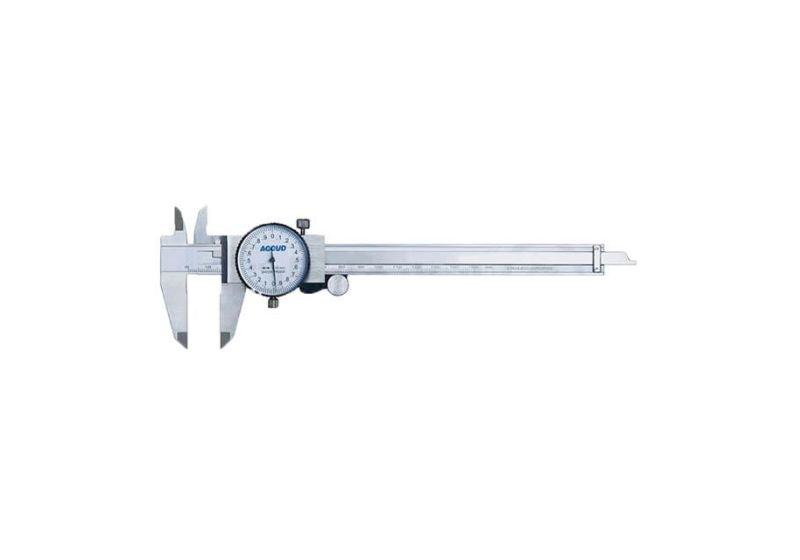

Accud dial caliper 20 cm model 21-008-101

Accud dial caliper 20 cm model 21-008-101

Brand:

آکاد - ACCUD

دسته بندی : caliper

Dial caliper

Information:

A dial caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
Measurable size: 0-200 mm
Measured in millimeters
The body is made of stainless steel and is resistant to wear
The height of the jaw to the body is 50 and the height of the upper jaw to the fixed body is 24 mm
Equipped with a thumb roller for easier use
Has a clock display (calibrated)
The height of the upper jaw to the movable body is 19 mm
Error: +/-0.03 mm
Accuracy: 0.02 mm
Body length and width: 288 and 16 mm
With a durable box for transportation
Has a blade to measure depth
Made in China

موارد بیشتر

Add to wishlist

Add to compare0

authenticity and physical health of the product warranty

Available in stock

Cash On Delivery tehran

Specialized advice when shopping

$85.68

Delivery: 1 to 3 weeks

Product Details
Reviews (0)

Product Details

Data sheet

Name: Dial caliper

Model: 101-008-21

Size: 0-200 mm

Jaws size: 50 mm

After-sale services: unavailable

Function system: Dial

Production material: Steel

Accuracy: 0.02 mm

Warranty: unavailable

Quality rating by Rastegar Sanat from 0 to 100: 60

Shipping Box: available

Made in: China

Overall length: 288 mm
