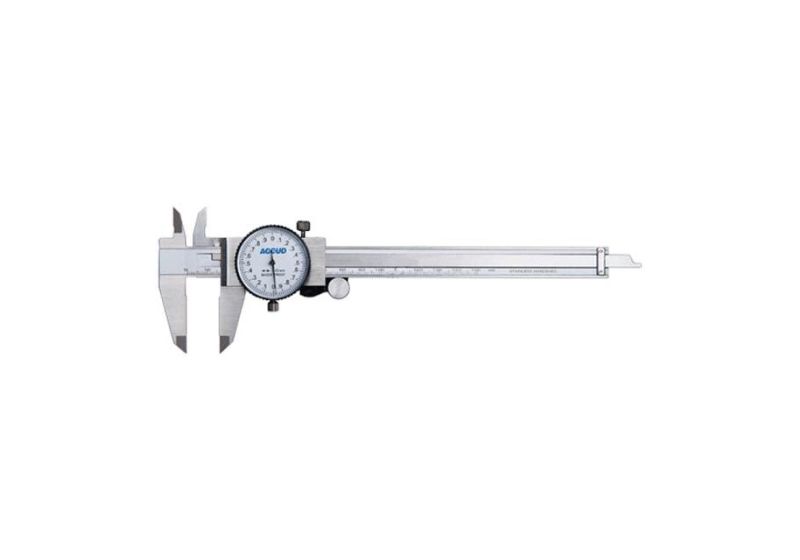

Accud Dial caliper 30 cm model 21-012-101

Accud Dial caliper 30 cm model 21-012-101

Brand:

آکاد - ACCUD

دسته بندی : caliper

Dial caliper

Information:

A dial caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
Measurable size: 0-300 mm
Measured in millimeters
Equipped with a thumb roller for easier use
Body made of stainless steel and wear-resistant
The height of the main jaw to the body is 64 and the height of the upper jaw to the fixed body is 30 mm
The height of the upper jaw to the movable body is 25 mm
Shockproof watch face (graded)
Error: +/-0.04 mm
Accuracy: 0.02 mm
Body length and width: 390 and 20 mm
Durable box for shipping
Has a blade to measure depth
Made in China
Buy Akad calipers at the best price on Rostgar Sanat site
For more information and the price of Akad caliper, please contact the sales office.

موارد بیشتر

Add to wishlist

Add to compare0

out of stock

Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.

موجود شد خبرم کن

Product Details
Reviews (0)

Product Details

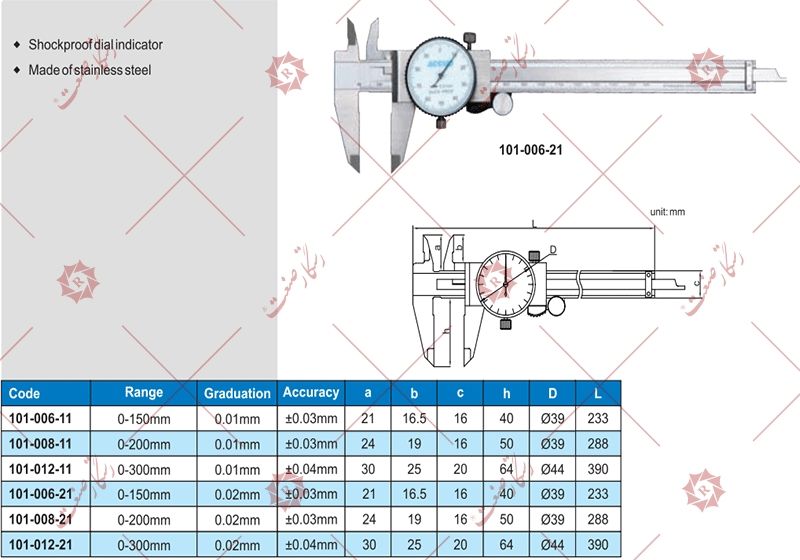

Data sheet

Name: Dial caliper

Model: 101-012-21

Size: 0 - 300 mm

Jaws size: 64 mm

After-sale services: unavailable

Function system: Dial

Production material: Steel

Accuracy: 0.02 mm

Warranty: unavailable

Quality rating by Rastegar Sanat from 0 to 100: 60

Shipping Box: available

Made in: china

Overall length: 390 mm
