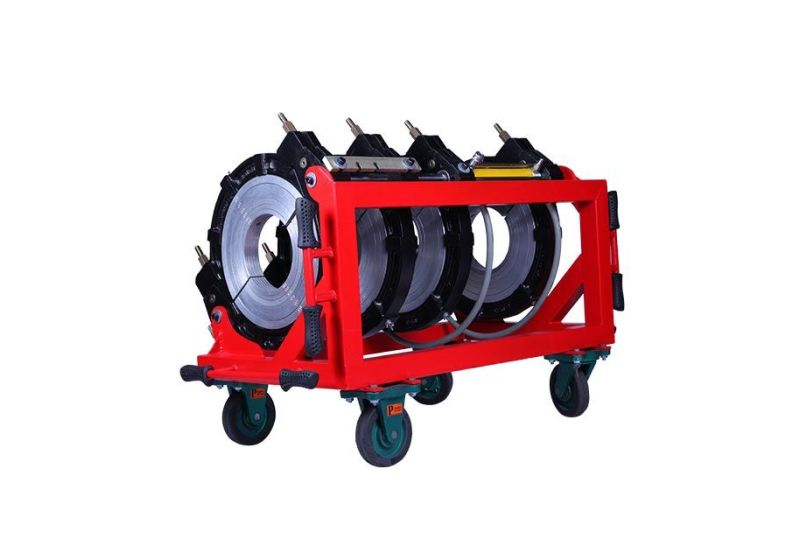

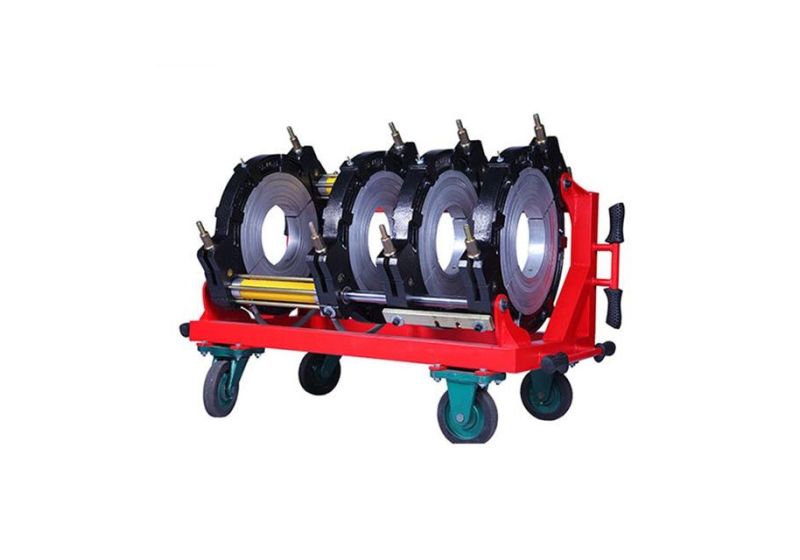

Full-hydraulic PE pipe fusion welding machine RSCO HP-400

Brand:

Full-hydraulic PE pipe fusion welding machine RSCO

Information:

Welding PE pipes in water supply lattices
The ability to weld PE pipes and fittings of sizes: 200 - 400 mm (8 - 16 in)
Working pressure rate: 2.5 - 24 Bar

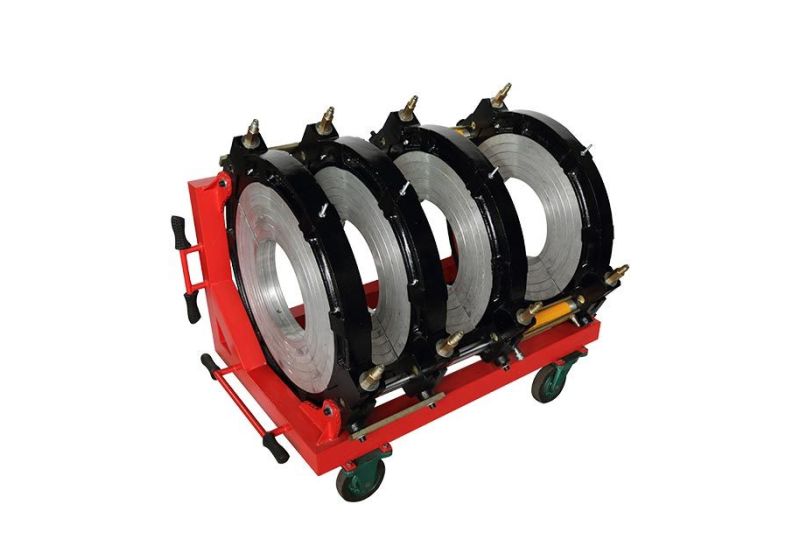

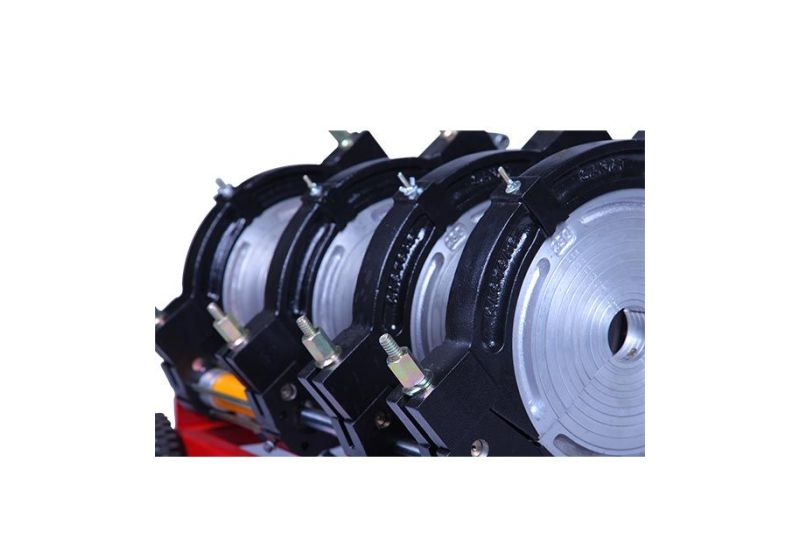

High-pressure jaws, width: 70 mm

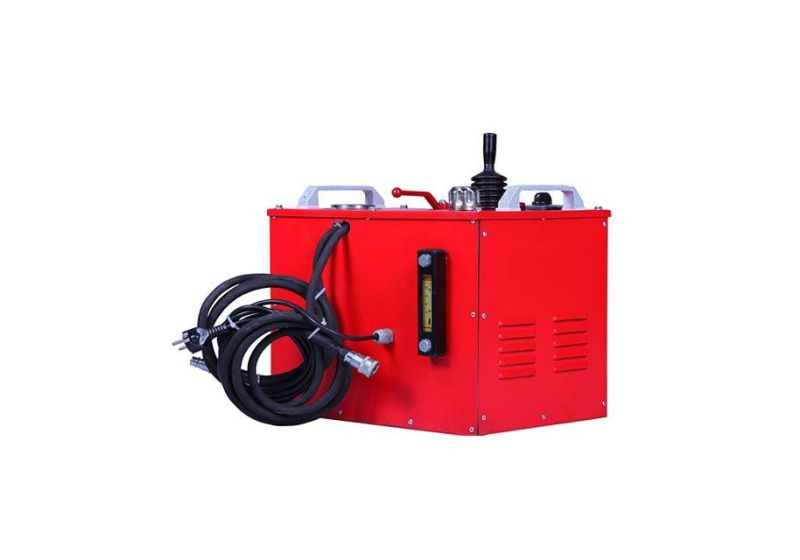

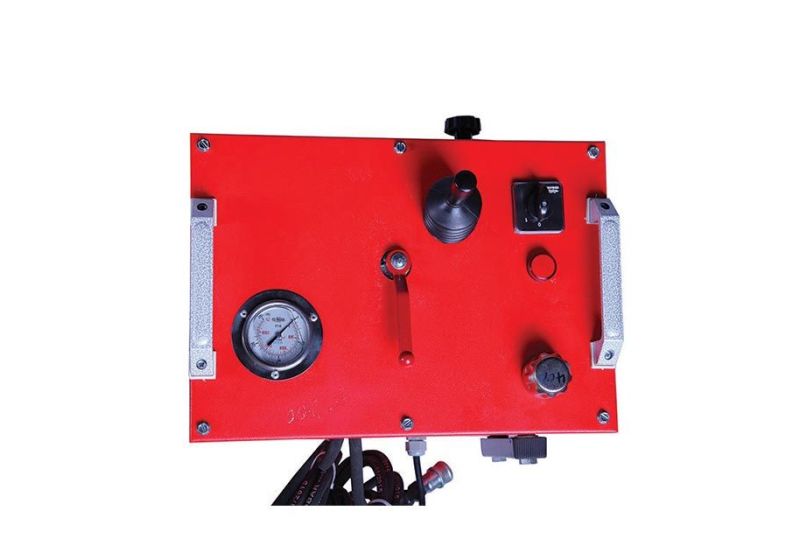

Hydraulic power with 250 Bar pressure

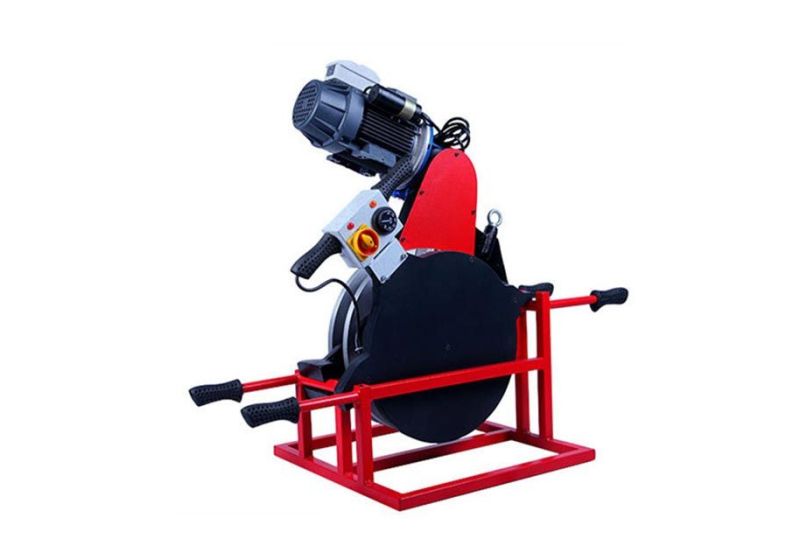

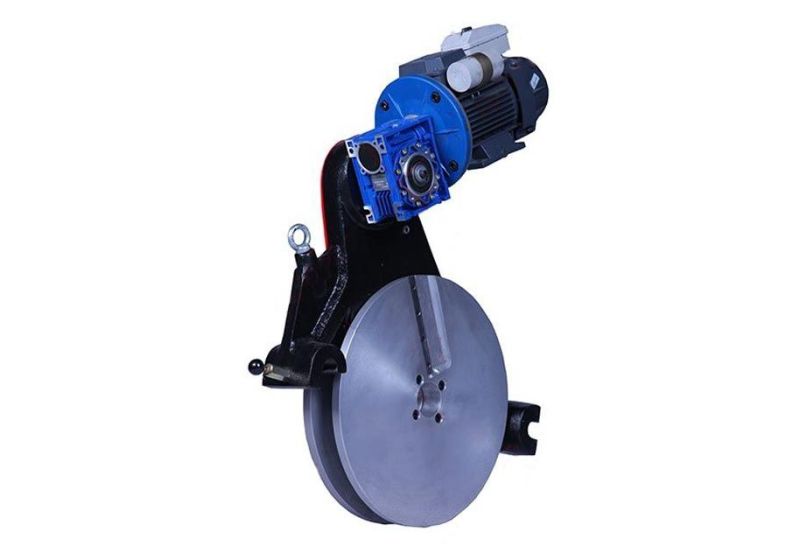

1100 W SPK gearbox electrical scraper with hardened steel blades

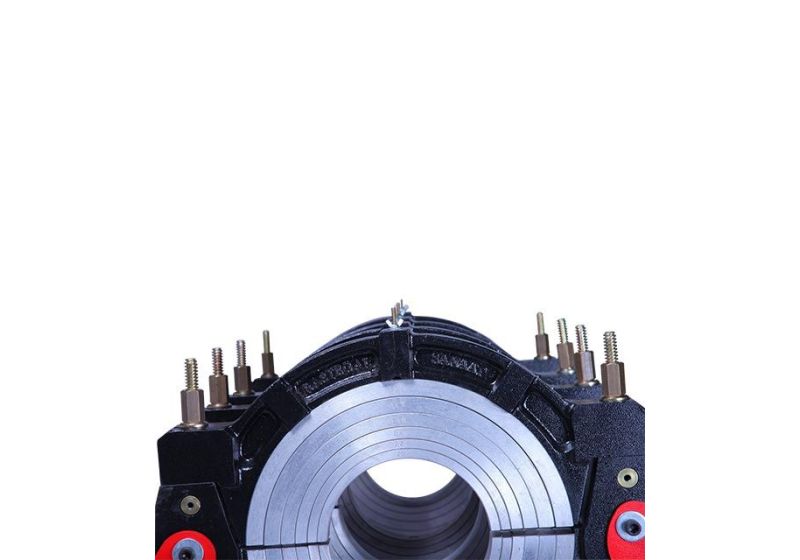

Sizes of internal jaws: 200, 225, 250, 280, 315, 355 mm
Size of the main jaw: 400 mm
Material used in the PE welding machine : aluminum ingot

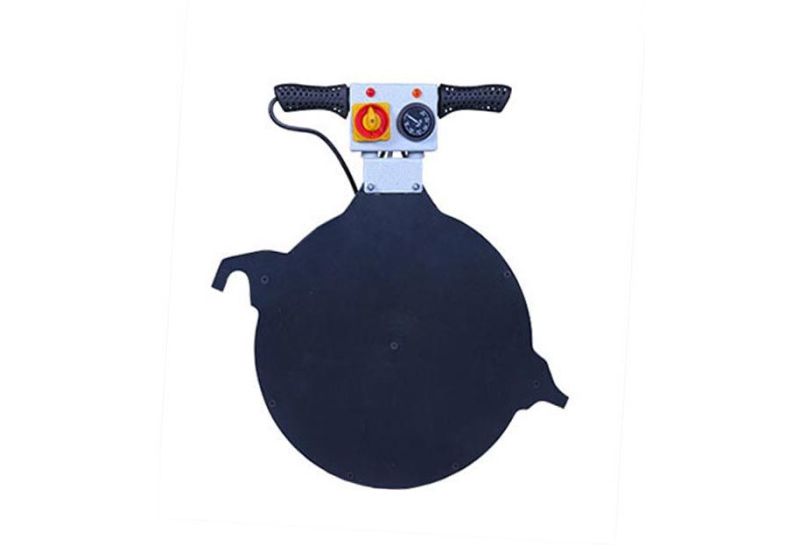

3000 W electrical heater with fireproof industrial Teflon cover and high-pressure industrial switch

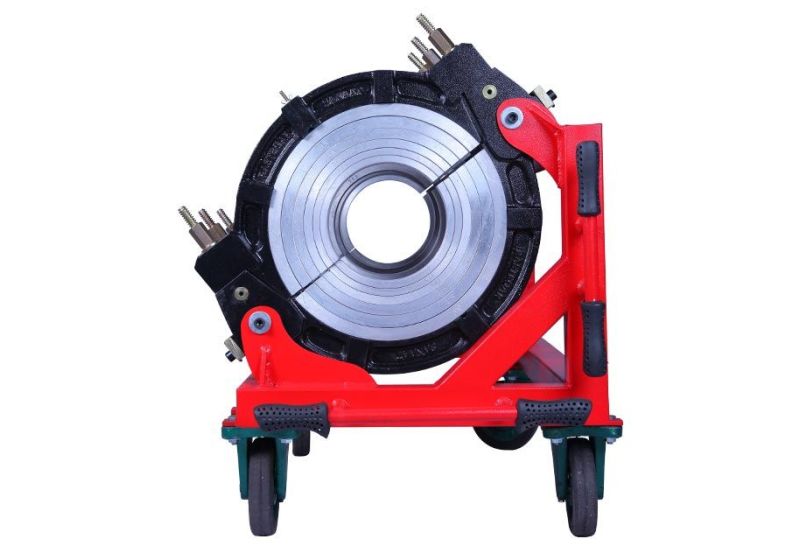

90-degree flat frame with wheels for easy moving
Toolbox including welding manual, Allen wrench, ratchet wrench, box, Allen screw, etc
All Rastegar Sanat PE pipe welding machines are made of 100% pure aluminum alloy
1-Year warranty and 10-years after-sale services
ISO9001 and CE standards
For more information contact us via the webpage

$2,664.00

Delivery: 1 to 3 weeks

Description

Full-hydraulic HDPE pipe welding machine (model: HP 400, size: 200-400)

Pe pipe welding machine isfor welding head of pipes in water supply networks.
The pipes can be welded to be the same in diameter and thickness.
We can weld PPR pipe by pe pipe welding machine.
Welds that are outside the machine are covered by the respective caps to prevent airflow.

Types of devices about pe pipe welding machine:

Types of device based on application:

Compeletly information:

PE pipe welding machine is used for pipe welding and PE pipe bonding,in transmission lines.
Welding extroder has another name like:extroder PE pipe welding,welding machine extroder,plastic welding extroder.pipe extroder,extroder pipe machine,extroder PE pipe welding.
This pipe extroder has ability to weld all surfaces like pvc grades.
PE pipe welding heater has ability to weld all PE pipes.
Pay attention to our need we have different models like electric PE pipe heater,digital PE pipe welding heater,gaseous PE pipe welding heater are available.
PE pipe welding machine is used for metal,steel,carbonsteel,galvanized,castiron.

How to work with full manual HDPE pipe welding machine:

Please attention how to work with this machine you must follow all the key points and how to use it.
When you do welding don't work in rainy,snowy,cold or windy weather.
Do welding in the space that the temprature is more than 0 degree.
If the propulsion force is supplied by generator before starting your activity check the amount of fuel to avoid generator to turn off and make trouble during welding.
If the propulsion force is supplied through the generator make the parts to break out it is out of our response.
For doing the welding put the pipe in the place and clean up the pipe edge and trimmer the pipe.
After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give the time to be dry and cold.
After few minutes remove the welding components from machine and let it to being cold.

Steps for welding operations:

Bring the welding machine and its accessories into working place.
For welding you need another person who can help you.
The clips of the machine are prepared according to the pipe diameter.
Connect the PE pipe machine to the power.
Place the pipes at the appropriate place and clean the edeges of the pipes.
We do the grating.
Put the HDPE pipe welding heaters in revelant place then make a pressure until pipe edge comes up about 1-4 mm.
After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give it time to be dry and cold.
After a few minutes remove the welding components from the machine and let it cool down.

Important recommendations on welding:

Before welding clean up the heater.
Perform a trial before the main weldimg.
Follow all steps in the test welding.
The part of pipe that is sticky can clean up the heater to be ready for next welding without dusty.
If the sizes of the pipes are changed then a test weld must again be performed.
It's best to wipe and clean underneath the welding equipment to prevent contamination and particle from making traoubles.
Be sure to use 10 yellow hydraulic oil.

Information:

Able to weld PE pipes and attachments from size: 200-400mm (8-16)
Working pressure rate: 2.5-24 times.
Includes high pressure jaws, width: 60mm.
Power hydraulic (250 times) to help tract (with electro motor welding machineI.
Includes: SPK dynamic scraper with 1100w SPK hard steel blades.
Includes 2500w electrical heater with fire proof industrial teflon cover and high pressure switch.
Power hydraulic (250 times) to help tract.
Includes 90 degree frame with wheels that helps to move.
Includes accessory box, HEX key set, ratchet, HEX screws.
Year warranty and 10 years after sale service.
ISO9001 and CE.
For more information contact us via webpage.
