Accud Dial caliper,15 cm model11-006-103
Accud Dial caliper,15 cm model11-006-103
Accud Dial caliper,15 cm model11-006-103
Accud Dial caliper,15 cm model11-006-103
Accud Dial caliper,15 cm model11-006-103
Accud Dial caliper,15 cm model11-006-103

Accud Dial caliper,15 cm model11-006-103

Brand:
آکاد - ACCUD

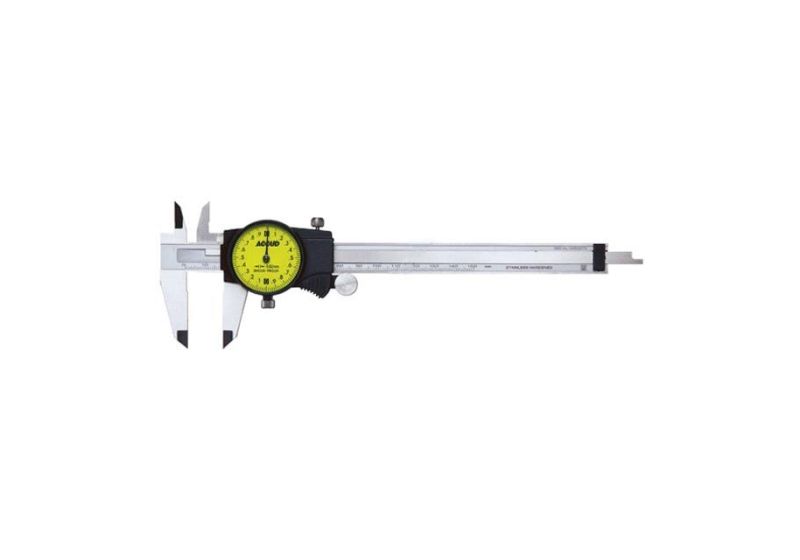

Dial caliper

Information:

  • A dial caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Measurable size: 0-150 mm
  • Equipped with a thumb roller for easier use
  • Measured in millimeters
  • The body is made of stainless steel and is resistant to wear
  • The height of the main jaw to the body is 40 and the height of the upper jaw to the fixed body is 21 mm
  • Body length and width: 233 and 16 mm
  • Has a shock-proof watch screen (graded)
  • Error: +/-0.03 mm
  • Accuracy: 0.01 mm
  • Durable box for shipping
  • Has a blade to measure depth
  • Made in China
  • Buy Akad calipers at the best price on Rostgar Sanat website
  • For more information and the price of Akad caliper, please contact the sales office.
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Dial caliper
Model
103-006-11
Size
0 - 150 mm
Jaws size
40 mm
After-sale services
unavailable
Function system
Dial
Production material
Steel
Accuracy
0.01 mm
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
60
Shipping Box
available
Made in
china
Overall length
233 mm
Reviews (0)

No customer reviews for the moment.
