Low Height Hydraulic Jack
/
RSCO Double acting Hollow Plunger Cylinders HCD5-150T

RSCO Double acting Hollow Plunger Cylinders HCD5-150T

RSCO Double acting Hollow Plunger Cylinders HCD5-150T

Brand:

آر اس کو RSCO

دسته بندی : Low Height Hydraulic Jack

Hydraulic Cylinder

Information:

Power: 150 tons
stroke 50 mm
enter trace 1495 kn
return trace 909 kn
Effective area enter trace : 213.5 cm2
Effective area return trace 129.9 cm2
Oil capacity enter trace : 1118 cm3
Oil capacity return trace 650 cm3
Closed mode height: 217 mm
extended height 267 mm
outside diameter 258 mm
inside diameter 210 mm
piston rod diameter 166 mm
Weight: 69.7 kg
Made in China
1 year After-sale services
Hollow plunger design allows for both push and pull forces
Double acting, hydraulic return
High strength alloy steel for durability
Baked enamel finish for increased corrosion resistance
Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
Contact us for more information

موارد بیشتر

Add to wishlist

Add to compare0

authenticity and physical health of the product warranty

Available in stock

Cash On Delivery tehran

Specialized advice when shopping

$1,319.40

Delivery: 1 to 3 weeks

فقط 5 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details
Reviews (0)

Product Details

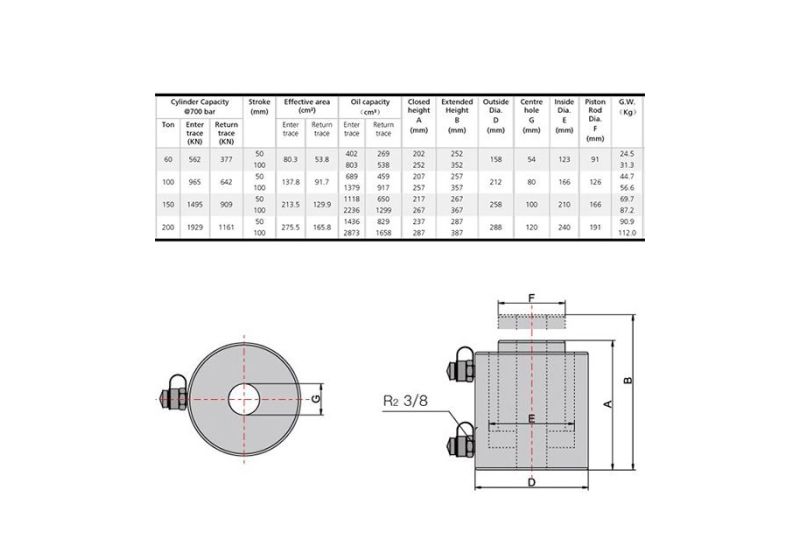

Data sheet

Name: Hydraulic Cylinder

Model: HCD5-150T

Function system: Hydraulic

Maximum pressure: 700 bar

Warranty: Unavailable

Quality rating by Rastegar Sanat from 0 to 100: 75

After-sale services: 1 year After-sale services

Made in: china

Weight: 69.7 kg

Overall length: 267 mm

Tank capacity: 1118cm3

نوع جک: Double acting Hollow Plunger Cylinders

ظرفیت جک: 150t
