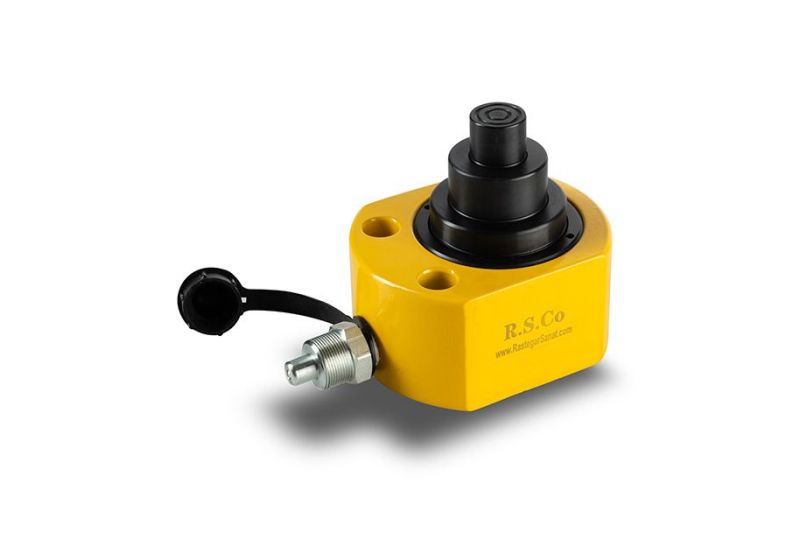

RSCO Multi Stage Hydraulic Cylinder Flat Jack HJP5-100T

Hydraulic Triple-Stage Cylinder

Information:

• Hydraulic Triple-Stage Cylinder To lift up objects using oil power in the tank

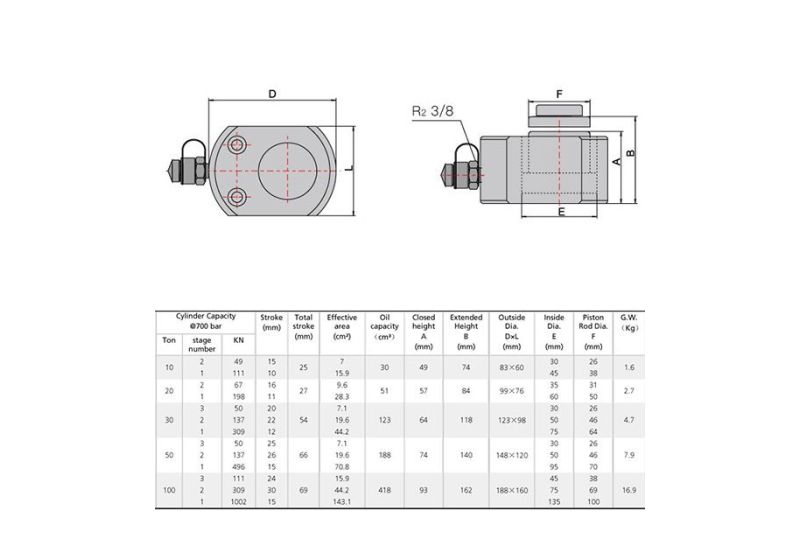

• Cylinder capacity 100 ton / first step 1002 KN / second step 309 KN / third step 111 KN
• stroke of first step 15mm / second step 30mm / third step 24mm
• total stroke 69 mm
• effective area first step 143.1 cm2 / second step 44.2 cm2 / third step 15.9 cm2
• oil capacity 418 cm3
• closed height 93 mm
• extended height 162 mm
• outside diameter 188*160 mm
• inside diameter first step 135mm / second step 75mm / third step 45mm
• piston rod diameter first step 100mm / second step 69mm / third step 38mm
• weight 16.9 kg
• Working pressure :700bar
• Made in China
• For use in confined spaces: machinery positioning, tool fastening, etc
• Single acting, load return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Cylinder bores are roller burnished to harden the surface and make it smoother
• Grooved piston rods require no saddle
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Mounting holes permit easy fixturing
• Contact us for more information
