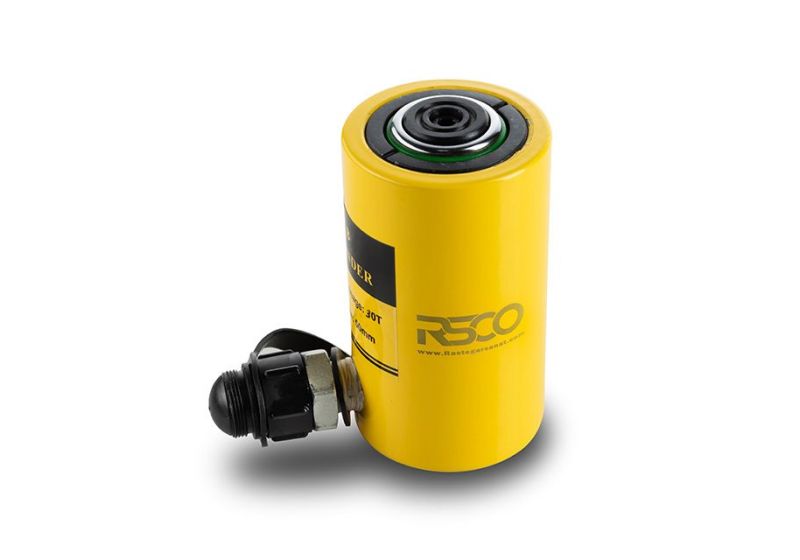

RSCO One Way Hydraulic Jack Cylinder 50 tons HSB15-50T

دسته بندی : Low Height Hydraulic Jack

Hydraulic Jack Cylinder

Information:

  • Cylinder capacity 50 ton / 496 KN
  • stroke 150mm
  • effective area 70.8 cm2
  • oil capacity 1147 cm3
  • closed height 247 mm
  • extended height 397 mm
  • outside diameter 123 mm
  • inside diameter 95 mm
  • piston rod diameter 70 mm
  • weight 18 kg
  • Standard saddle diameter 57.5 mm
  • handle : yes
  • Working pressure :700bar
  • Made in China
  • After sale services
  • Contact us for more information
Add to wishlist
Add to compare0
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Hydraulic Jack Cylinder
Model
HSB15-50T
After-sale services
1 year
Function system
hydraulic
Maximum pressure
700 bars
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
China
Weight
18 kg
Overall length
397 mm
Tank capacity
1147 CM3
نوع جک
One Way Hydraulic Jack
ظرفیت جک
50T
