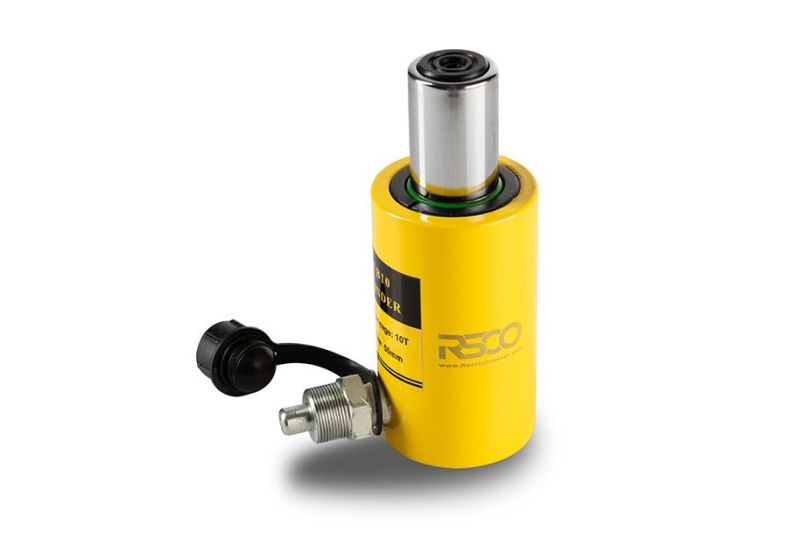

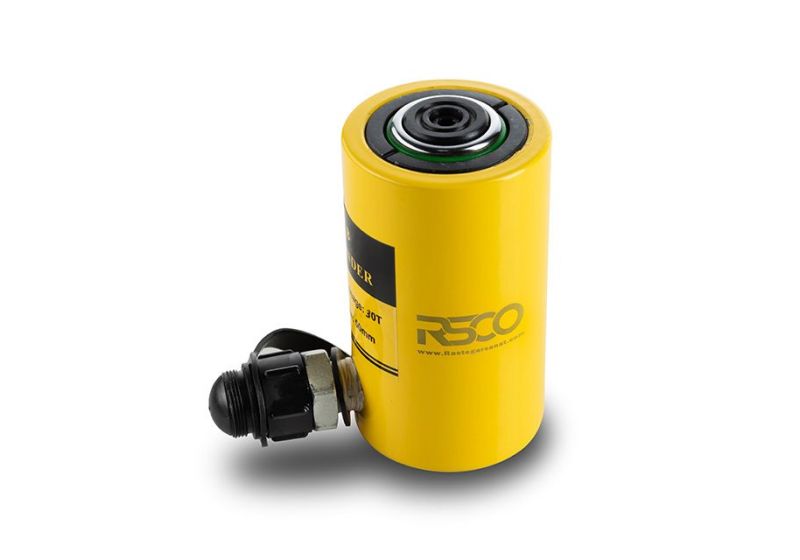

RSCO One Way Hydraulic Jack Cylinder 150 tons HSB15-150T

Hydraulic Jack Cylinder

Information:

  • Cylinder capacity 150 ton / 1496 KN
  • stroke 150mm
  • effective area 213.7 cm2
  • oil capacity 3342 cm3
  • closed height 282 mm
  • extended height 432 mm
  • outside diameter 205 mm
  • inside diameter 165 mm
  • piston rod diameter 115 mm
  • weight 63 kg
  • Standard saddle diameter 89 mm
  • handle : Eye bolts
  • Working pressure :700bar
  • Made in China
  • After sale services
  • Contact us for more information
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

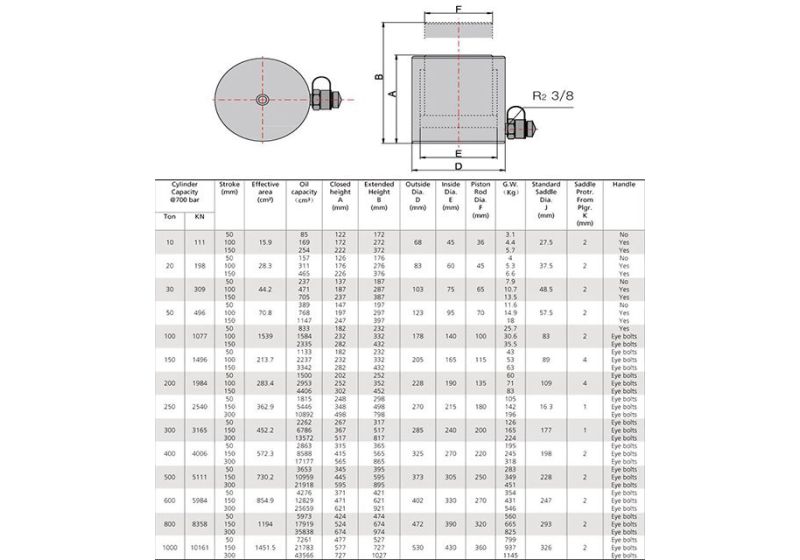

Data sheet

Name
Hydraulic Jack Cylinder
Model
HSB15-150T
After-sale services
1 year
Function system
hydraulic
Maximum pressure
700 bars
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
China
Weight
63 kg
Overall length
432 mm
Tank capacity
3342cm3
نوع جک
One Way Hydraulic Jack
ظرفیت جک
150t
Reviews (0)

No customer reviews for the moment.
