Best Price of Bench Lathe in RSCO BLCY1640 in RSCO shop

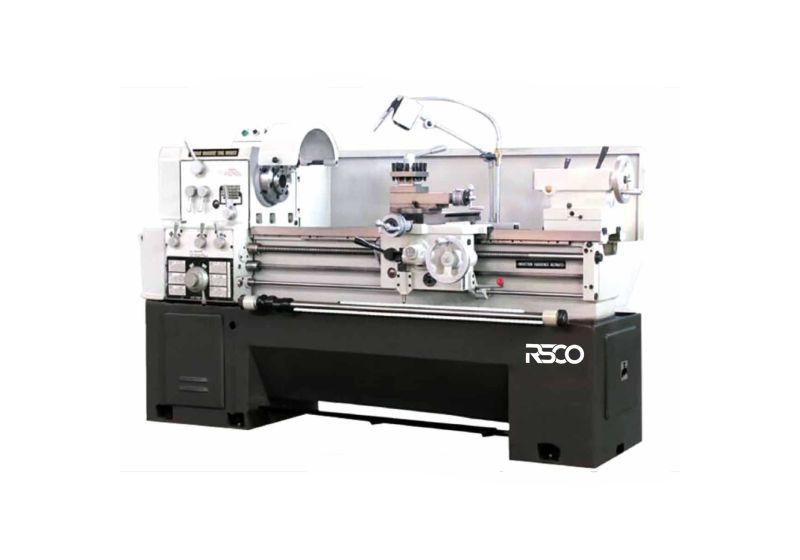

RSCO Bench Lathe model BLCY1640

Brand:

RSCO Bench Lathe

Specifications:

A bench lathe machine is a versatile and essential tool in the field of precision machining
The headstock, gear-box, apron and bed-ways are made of high quality cast iron, and they are all cast with the resin sand foundry technology.
The base of the bed is cast into mono-block with a chip space. The structure ensures high rigidity of the whole machine and convenient chip disposal.
The bed-ways are induction hardened.
The spindle supported by 3-pointed high-precision bearings and all gears in headstock are precisely grinded, the spindle turns smoothly at high speed.
The noise is lower than 78db at 2000pm.
Foot brake, overload protection, chip guard, longitudinal automatic stop device, point-to-point control in spindle, manual lubrication pump, ensures easy operation and good performance of the machine.
Swing over bed: 410 mm
Swing over cross slide: 258 mm
Distance between centers: 1000 mm
power : 3 kw
Width of bed: 274 mm
Spindle diameter: 52 mm
Tapper of Spindle: M.T.6
Range of Spindle speed: 33-2000 rpm
Taper of Tailstock: M.T.4
Longitudinal feeding range: 0.08-1.15 mm/rev
Cross feeding range: 0.06-0.92 mm/rev
Net weight: 2000 kg
Packing size: 2350x1150x1700 mm
Made in China
If repairing of the bench lathe machine is needed call repairing department of Rastegar Sanat
For more information about the price of the bench lathe call selling department of Rastegar Sanat

Bench Lathe Machine: An Essential Tool in Precision Machining

A bench lathe machine is a versatile and essential tool in the field of precision machining. It is designed to perform various operations such as cutting, sanding, knurling, drilling, and turning, which are crucial in shaping metal or wood workpieces. This essay explores the components, functions, and applications of bench lathes, highlighting their significance in both industrial and hobbyist settings.

Components of a Bench Lathe

A bench lathe consists of several key components that work together to achieve precise machining:
1 Lathe Bed: The foundation of the lathe, providing stability and support for all other components.
2 Headstock: Houses the spindle and motor, responsible for rotating the workpiece.
3 Tailstock: Positioned opposite the headstock, it supports the workpiece and can hold tools for drilling or reaming.
4 Carriage: Moves along the bed and holds the cutting tool, allowing for precise control over the machining process.
5 Tool Post: Mounted on the carriage, it secures the cutting tool in place.
6 Chuck: Attached to the spindle, it grips the workpiece firmly.
7 Cross Slide and Compound Rest: Allow for lateral and angular movement of the cutting tool, enabling intricate cuts and shapes.

Functions and Operations of Bench Lathe

Bench lathes are capable of performing a wide range of operations, making them indispensable in various machining tasks:
• Turning: The primary function, where the workpiece is rotated while a cutting tool shapes its exterior.
• Facing: Creating a flat surface at the end of the workpiece.
• Drilling: Using the tailstock to hold a drill bit, holes can be precisely drilled into the workpiece.
• Knurling: Producing a textured pattern on the surface for better grip.
• Threading: Cutting threads on the exterior or interior of the workpiece for screws and bolts.

Applications of Bench Lathes

Bench lathes are used in numerous industries and by hobbyists for various applications:
• Manufacturing: Essential in producing parts for machinery, automotive components, and aerospace parts.
• Prototyping: Ideal for creating prototypes and custom parts with high precision.
• Jewelry Making: Used by jewelers to shape and polish metal pieces.
• Woodworking: Employed by woodworkers to create detailed and intricate designs.
Advantages of Bench Lathes
The bench lathe offers several advantages that make it a preferred choice for precision machining:
• Versatility: Capable of performing multiple operations on a single machine.
• Precision: Allows for high accuracy in shaping and cutting materials.
• Compact Size: Fits on a workbench, making it suitable for small workshops and hobbyists.
• Cost-Effective: Provides a cost-efficient solution for various machining tasks.

Conclusion
In conclusion, the bench lathe machine is a fundamental tool in the realm of precision machining. Its versatility, precision, and compact size make it an invaluable asset in both industrial and hobbyist settings. Whether used for manufacturing, prototyping, or crafting intricate designs, the bench lathe continues to play a crucial role in shaping the world of machining.
