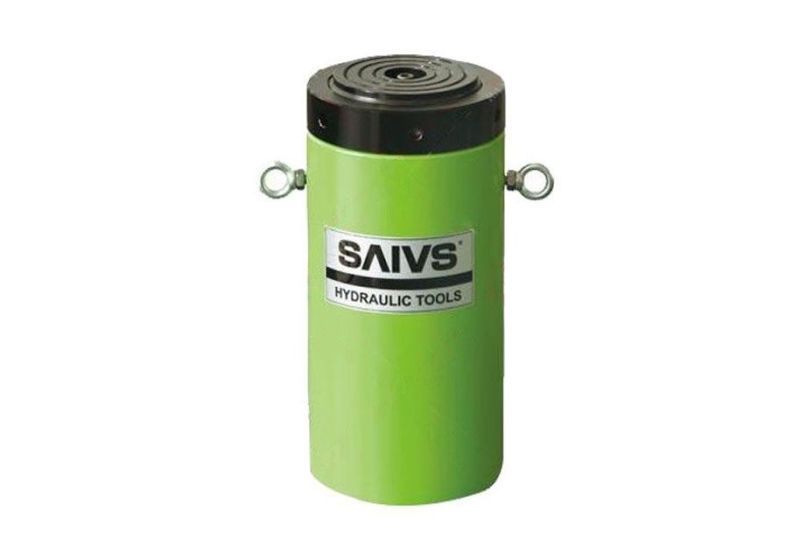

General Purpose Hydraulic Cylinder 200 tons

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 100 tons
• Oil tank capacity: 200 cc
• Length in closed mode: 92 mm
• Length in open mode: 100 mm
• Dimensions: 10*17*25 cm
• Weight: 14 kg
• Made in China
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using its oil power in the tank
• Power: 100 tons
• Has a hole in the middle of the corresponding piston
• Oil tank capacity: 2174 cm
• High build quality
• Maximum working pressure: 700 bars
• Length: 386 mm
• Equipped with steel base to protect against overload
• External diameter: 213 mm
• Weight: 90 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 931 kn
• Maximum Cylinder Capacity Retract 612 kn
• Stroke 153mm
• Collapsed Height 342 mm
• Extended Height 495 mm
• Center Hole Diameter 79.2 mm
• Plunger Type : Hollow
• Return Type : Double-Acting, Hydraulic Return
• Material : steel
• Cylinder Effective Area Advance 133cm2
• Cylinder Effective Area Retract 87.4cm2
• Oil Capacity Advance 2035cm3
• Oil Capacity Retract 1337cm3
• Weight: 79 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 12 t
• Maximum Cylinder Capacity Advance 125 kn
• Stroke 42 mm
• Collapsed Height 120 mm
• Extended Height 162 mm
• Center Hole Diameter 19.5 mm
• Return Type : Single-Acting, Spring Return
• Plunger Type : Hollow
• Hollow : steel
• Cylinder Effective Area Advance 17.9 cm2
• Oil Capacity Advance 75 cm3
• Surface Treatment : paint
• Weight 2.8 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• capacity : 3 tons
• Max height : 194 mm
• Minimum height : 118 mm
• adjust height 60 mm
• Suitable for heavy and industrial work for a long time
• Equipped with a heated and resistant auxiliary screw for height adjustment
• Made with high quality
• Weight : 3.6 kg
• Made in China
• Contact us for more information.

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 30 ton
• Maximum Cylinder Capacity Advance 358kn
• Stroke 100mm
• Collapsed Height 267mm
• Extended Height 367 mm
• Center Hole Diameter 34mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 51.1cm2
• Oil Capacity Advance 511cm3
• Weight : 9.5 kg
• Made in USA
• After-sale services
• Contact us for more information
