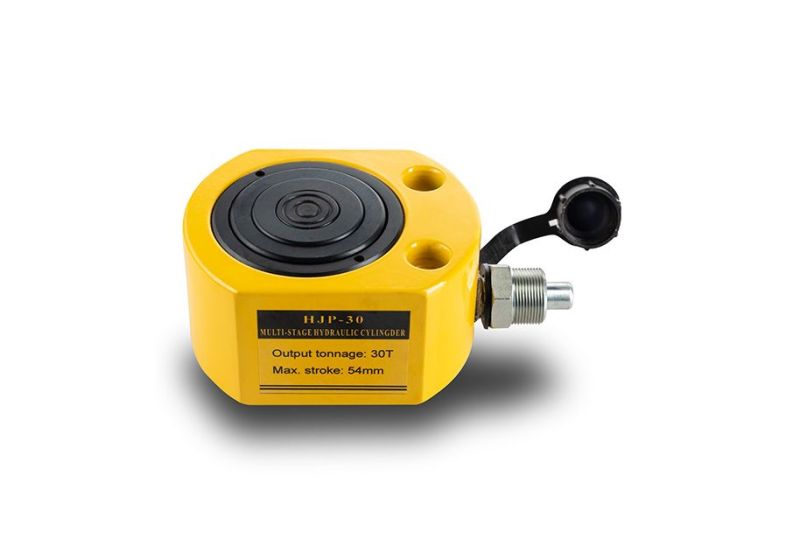

RSCo Multi Stage Hydraulic Cylinder Flat Jack HJP5-30T

Hydraulic Triple-Stage Cylinder

Information:

  • Hydraulic Triple-Stage Cylinder To lift up objects using oil power in the tank

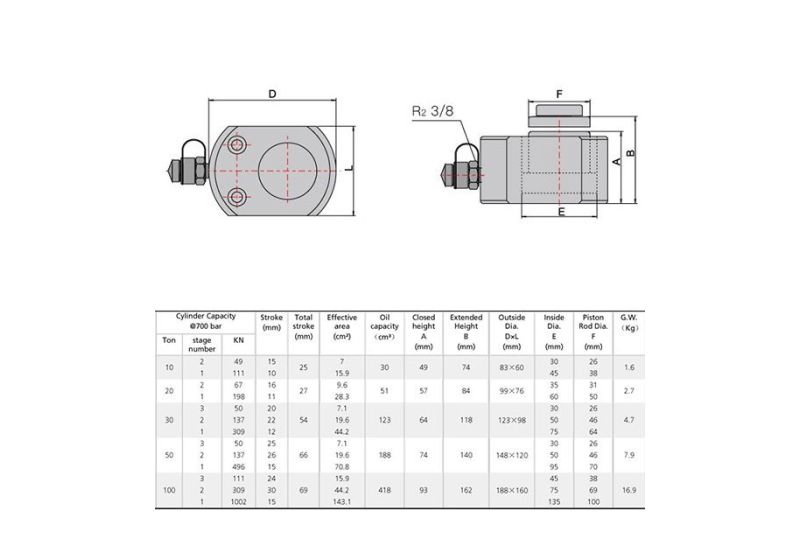

  • Cylinder capacity 30 ton / first step 309 KN / second step 137 KN / third step 50 KN
  • stroke of first step 12mm / second step 22mm / third step 20mm
  • total stroke 54 mm
  • effective area first step 44.2 cm2 / second step 19.6 cm2 / third step 7.1 cm2
  • oil capacity 123 cm3
  • closed height 64 mm
  • extended height 118 mm
  • outside diameter 123*98 mm
  • inside diameter first step 75mm / second step 50mm / third step 30mm
  • piston rod diameter first step 64mm / second step 46mm / third step 26mm
  • weight 4.7 kg
  • Working pressure :700bar
  • Made in China
  • For use in confined spaces: machinery positioning, tool fastening, etc
  • Single acting, load return
  • High strength alloy steel for durability
  • Baked enamel finish for increased corrosion resistance
  • Cylinder bores are roller burnished to harden the surface and make it smoother
  • Grooved piston rods require no saddle
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Mounting holes permit easy fixturing
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
Hydraulic Triple-Stage Cylinder
Model
HJP5-30 T
After-sale services
1 year
Function system
Hydraulic
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Weight
4.7 kg
Overall length
118 mm
Tank capacity
123 ml
Dimensions
98*123 mm
نوع جک
Multi-Stage Hydraulic Cylinder Flat Jack
ظرفیت جک
30T
Reviews (0)

No customer reviews for the moment.
