RSCo Sewage PE pipe welding machine F202

RSCo Hot Air Hand Tool

Information:

• For welding all kinds of plastic surfaces in grades of PVC, PP, polyethylene, etc.
• Cooling protective tube
• Output temperature: 430 liters per minute
• Temperature range: 60 - 700 C
• Thermal element protector at a temperature of 700 degrees
• Power: 3400 watts of heat
• Lightweight and portable
• Shrink ability
• Custom flat and rod nozzle
• After-sales services of Rastegar Sanat
• Contact us for more information

RSCO Extrusion Welder 1600 W

Information:

• For welding pipes and surfaces (PE, polyfluoride, PEX pipe, PVC)
• The blower does not need adjustment
• Metabo German electric motor
• Input Voltage: 220 V
• Motor Power: 800 W
• Hot Air Power: 3400 W
• Welding Rod heating Power: 800 W
• Air Temperature: 20-620°C
• Extruding Temperature: 200-380°C
• Extruding Volume: 2 Kg/h
• Welding Rod Diameter: Φ 3-4 mm
• Weight: 6.5 kg
• Thickness welded: 8-40 mm
• Including: 1pcs Flat nozzle, 1 pcs Corner nozzle, 1 pcs Spare heating, element
• ISO and CE standards from the European Union
• After-sales service of Rastegar Sanat Company
• Contact us for more information about Extrusion Welder.
• If Extrusion welder needs any repair call our repair department.

RSCo electrofusion welding machine:

Information:

• For welding all types of HDPE pipes and joints of sizes 16 to 250 mm
• External memory
• Aluminum body with electrostatic color cover
• Ability to store welding information and connect to a printer to print information and connect to a computer
• Input cable with 10 meters length and 4 meters output cable
• Ability to weld with an electric motor with a power of 5 kW and city electricity
• Working voltage: 187-253 V
• Frequency: 40-60 Hz
• Working temperature range: -10 to +45 C
• Ability to weld every electrofusion joints
• Ability to transfer barcode information in two ways, by barcode reader and manually (24-digit code)
• Barcode reader pen with a resolution code of 4 miles (the most compact barcodes)
• 20 * 4 LCD screen for data display
• Output plugs in accordance with the standard and suitable for any type of Iranian and foreign connection (type A1 - 4 mm with an approximation of 0.03 mm and type A2 - 4.7 mm with an approximation of 0.03 mm)
• IP54 protection class
• Weight: 8.7 Kg
• Calibration sheet
• LCD panel made of polycarbonate resistant to sunlight, heat and waterproof and  5 functional touch switches including switch for acceptance, cancellation, up and down direction and on / off of the machine
• Aluminum strongbox
• Includes iran gas company confirmation
• 1-year RSCo warranty and 10-years after-sale service
• Contact us for more information.

RSCo chain pipe wrench

Information:

• Able to hold PE pipes and joints
• Able to open and close all kinds of joints of PP, push-fit, and PVC
• Working size: 50, 63, 75, 90, 110, 125, 140, 160 mm
• Material: ductile cast iron
• Full-steel double chain
• Ability to endurance the high-pressure
• Chain holder tab.
• ISO9001 and CE standards
•  5-years after-sale service
• For more info contact us via the webpage

RSCo PE pipe wrench

Information:

• Ability of holding PE pipes and joints
• Able to open and close all kinds of joints of PE and PVC
• Working size: 50-63-75-90-110-125 mm
• Material: the best alloyed aluminum
• Adjustable jaw
• Power: 500 N
• ISO9001 and CE standards
• 5-Years after-sale services
• For more info contact us via the webpage

RSCO pipe Roller Cutter

Information:

• To cut PP and PVC pipes
• Cutting size: 100-168 mm
• Full-steel blade
• High accuracy and easy adjusting
• Return system (by using the relevant latch)
• Strong aluminum body
• ISO9001 and CE standards
• Contact us for more information

Pipe Roller Cutter

Information:

• To cut PP and PVC pipes
• Cutting size: 6-67 mm
• Full-steel blade
• High accuracy and easy adjusting
• Return system (by using the relevant latch)
• Strong aluminum body
• ISO9001 and CE standards
• Contact us for more information

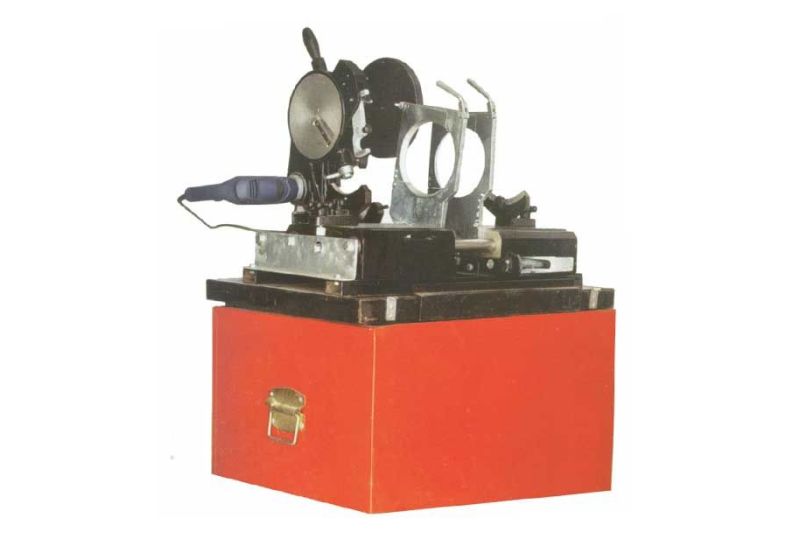

Semi-hydraulic PE pipe welding machine

Information:

• Welding PE pipes in water supply lattices
• The ability to weld PE pipes and fittings of sizes: 63 - 315 mm (2-12 in)
• Working pressure rate: 2.5 - 24 Bar
• High-pressure jaws, width: 60mm
• Hydraulic Power (250 Bar) to help traction
• Manual or gearbox electrical scraper with 1100w SPK hardened steel blades
• 2500 W electrical heater with fireproof industrial Teflon cover and high-pressure switch
• 1010 W scraper of RSCo brand
• Includes 90-degree frame and wheels for easy working
• The material used in the PE welding machine : aluminum ingot
• Sizes of internal jaws: 63, 75, 90, 110, 125, 140, 160, 180, 200, 225, 250 mm
• Size of the main jaw: 315 mm
• Toolbox including welding manual, Allen wrench, ratchet wrench, box, Allen screw, etc
• All Rastegar Sanat HDPE pipe welding machines are made of 100% pure aluminum alloy
• 1-Year warranty and 10-years after-sale services
• ISO9001 and CE standards
• For more information contact us via the webpage
