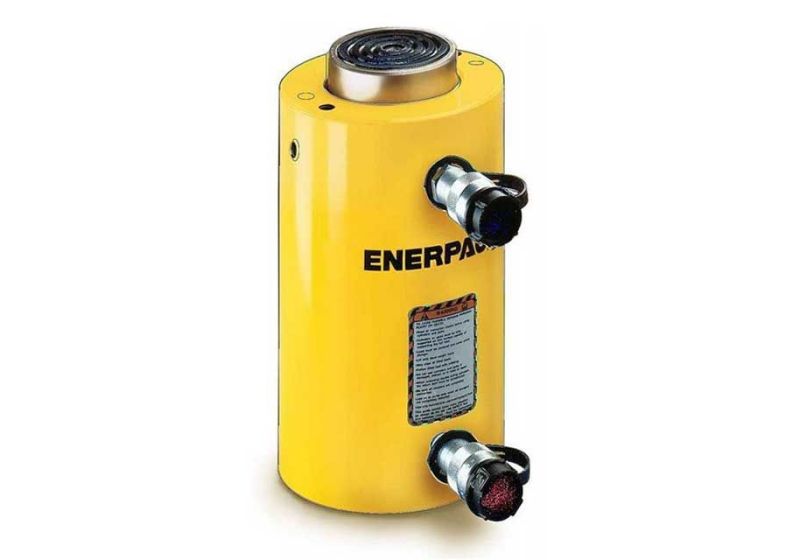

ENERPAC Two Way Hydraulic Jack 50 tons CLRG-506

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 50 tons
• Oil tank capacity: 170 Square centimeters
• Maximum working pressure: 700 bar
• Length in closed mode: 67 mm
• Length in open mode: 82 mm
• External diameter: 140 mm
• Weight: 6.6 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 75 tons
• Available in 10-150 tons
• Oil tank capacity: 187 mm
• Length in closed mode: 79 mm
• Length in open mode: 96 mm
• Shaft diameter: 100 mm
• Weight:12.7 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Power: 152 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 4320 cm
• Effective area: 212.8 cm
• Two way model
• Length: 503 mm
• External diameter: 270 mm
• High build quality
• Weight: 170 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50t
• Maximum Cylinder Capacity Advance 496 kn
• Stroke 150mm
• Collapsed Height 301 mm
• Extended Height 451 mm
• Return Type Double-Acting, Hydraulic Return
• Plunger Type : solid
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Cylinder Effective Area Retract 26.7cm2
• Oil Capacity Advance 1063cm3
• Oil Capacity Retract 401cm3
• Weight: 14.3 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 75 ton
• Stroke 333 mm
• Collapsed Height 492 mm
• Extended Height 825 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 102.6 cm2
• Oil Capacity Advance 3417 cm3
• Weight : 59 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Maximum working pressure: 700 bar
• Lifting weight: 200 tons
• Oil tank capacity: 4.33 L
• Length when the shaft is closed: 362 mm
• Designed for use in all situations
• External diameter: 135 mm
• Weight: 137 kg
• Made in USA
• Contact us for more information
