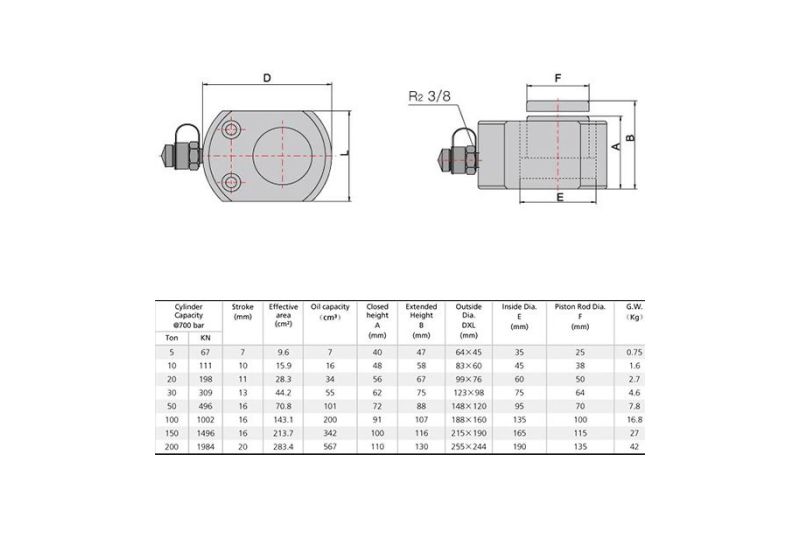

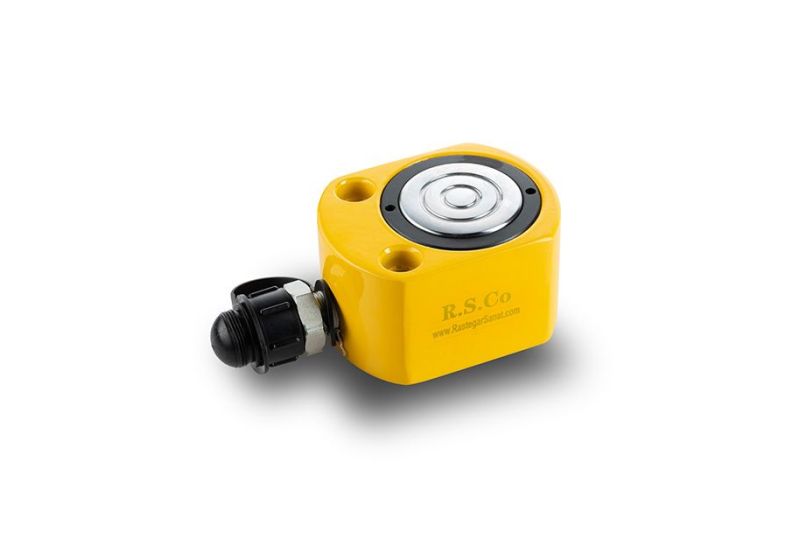

RSCo Flat Hydraulic Cylinder HJR5-150T

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 50 tons
• Oil tank capacity: 170 Square centimeters
• Maximum working pressure: 700 bar
• Length in closed mode: 67 mm
• Length in open mode: 82 mm
• External diameter: 140 mm
• Weight: 6.6 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 75 tons
• Available in 10-150 tons
• Oil tank capacity: 187 mm
• Length in closed mode: 79 mm
• Length in open mode: 96 mm
• Shaft diameter: 100 mm
• Weight:12.7 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 100 tons
• Oil tank capacity: 200 cc
• Length in closed mode: 92 mm
• Length in open mode: 100 mm
• Dimensions: 10*17*25 cm
• Weight: 14 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information
