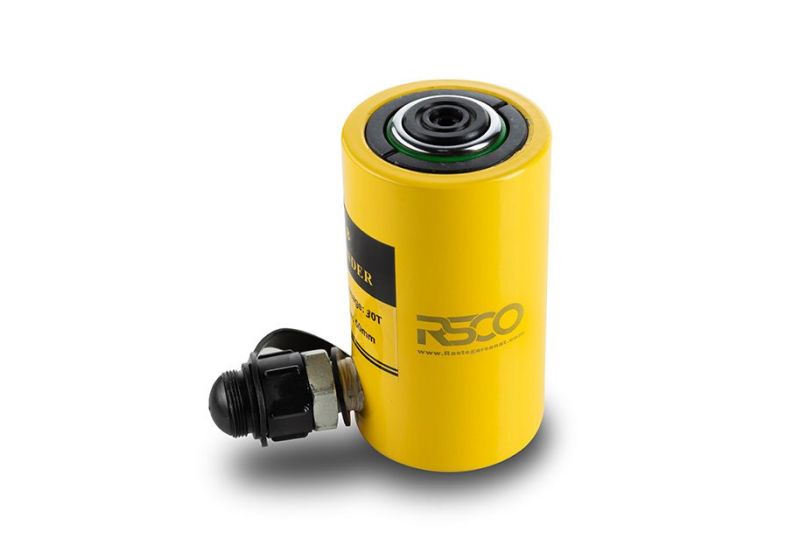

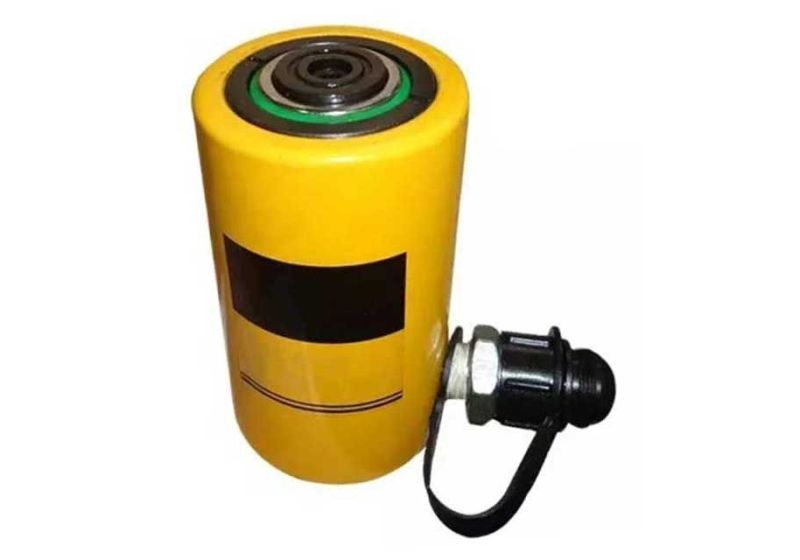

RSCO One Way Hydraulic Jack Cylinder 100 tons HSB15-100T

Hydraulic Jack Cylinder

Information:

  • Cylinder capacity 100 ton / 1077 KN
  • stroke 150mm
  • effective area 153.9 cm2
  • oil capacity 2335 cm3
  • closed height 282 mm
  • extended height 432 mm
  • outside diameter 178 mm
  • inside diameter 140 mm
  • piston rod diameter 100 mm
  • weight 35.5 kg
  • Standard saddle diameter 83 mm
  • handle : yes
  • Working pressure :700bar
  • Made in China
  • After sale services
  • Contact us for more information
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

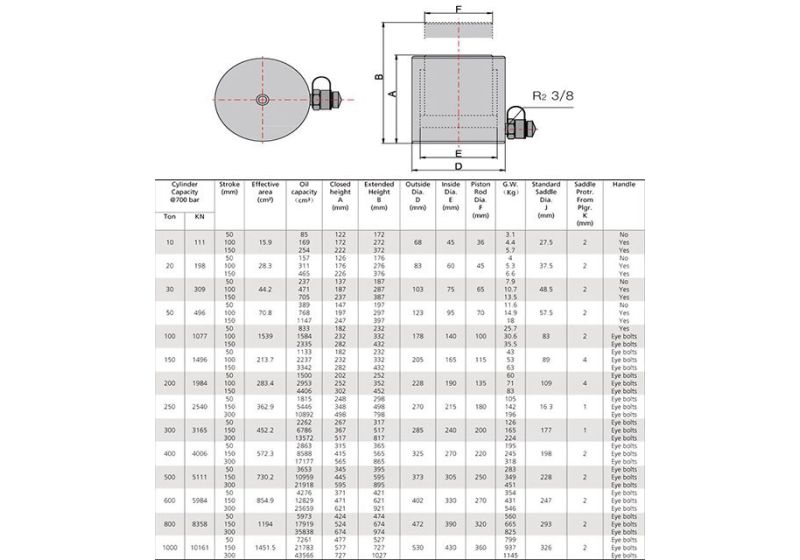

Data sheet

Name
Hydraulic Jack Cylinder
Model
HSB15-100T
After-sale services
1 YEAR
Function system
hydraulic
Maximum pressure
700 bars
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
China
Weight
35.5 kg
Overall length
432 mm
Tank capacity
2335cm3
نوع جک
One Way Hydraulic Jack
ظرفیت جک
100t
Reviews (0)

No customer reviews for the moment.
