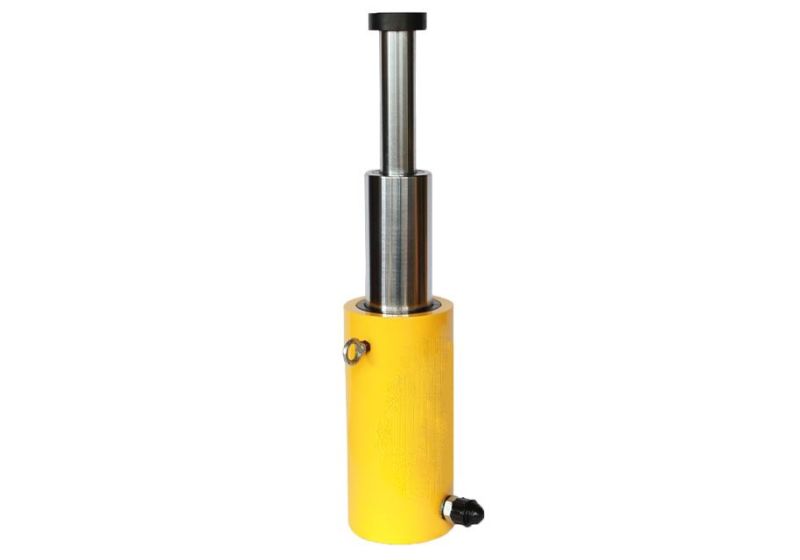

RSCO telescope hydraulic cylinders HCT2-15

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 15 tons
• First-stage power : 445 kN
• Second-stage power : 166 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 150 mm
• total stroke 300 mm
• effective area First-stage 63.6
• effective area Second-stage 23.7
• Oil capacity: 1308 cm2

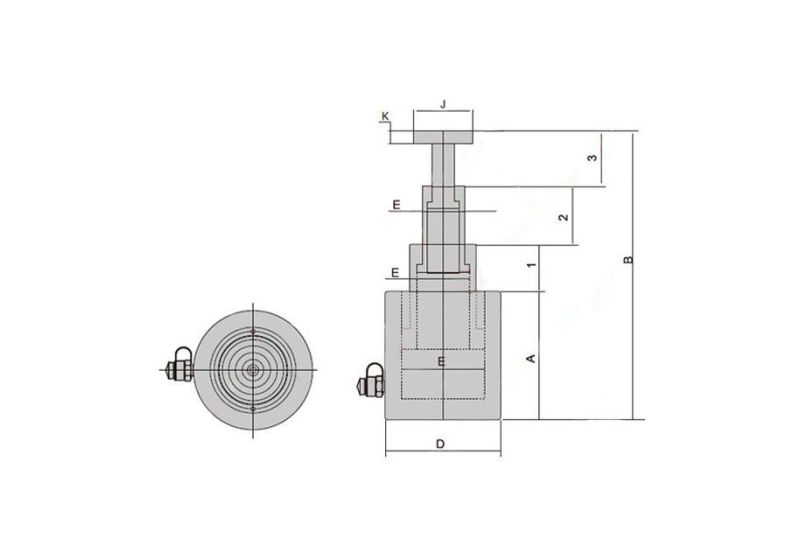

• closed height : 280 mm
• outside diameter 125 mm
• inside diameter First-stage 90 mm
• inside diameter Second-stage 55 mm
• standard saddle diameter 63 mm
• Weight: 28 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information
