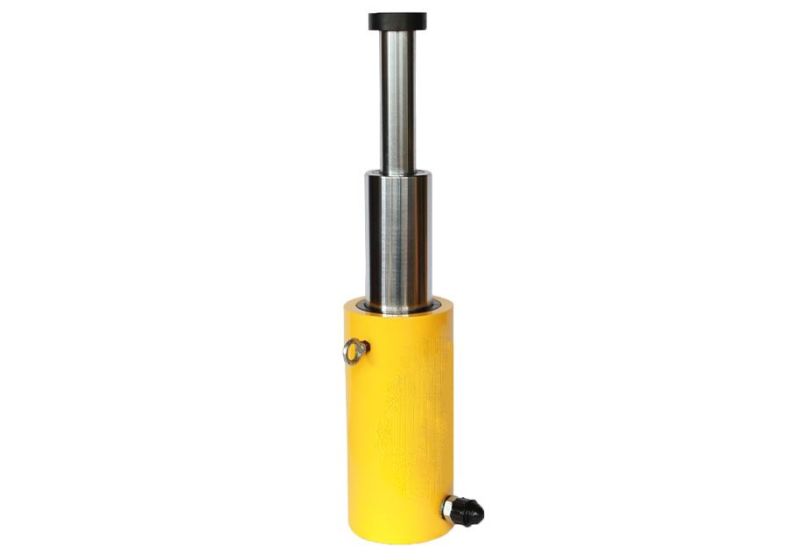

RSCO telescope hydraulic cylinders HCT2-50

Hydraulic Jack

Information:

• Power: 30 tons / 334 KN
• stroke 100mm
• Effective area: 44.7 cm
• Oil capacity: 477 cm3
• Closed mode height: 246 mm
• extended height 346 mm
• outside diameter 114 mm
• inside diameter 90 mm
• center hole(G) : 33 mm
• piston rod diameter 63 mm
• Weight: 14.5 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Power: 100 tons / 946 KN
• stroke 75mm
• Effective area: 135.2 cm
• Oil capacity: 1015 cm3
• Closed mode height: 276 mm
• extended height 351 mm
• outside diameter 212 mm
• inside diameter 165 mm
• center hole(G) : 80 mm
• piston rod diameter 127 mm
• Weight: 57 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack Cylinder

Information:

• Cylinder capacity 50 ton / 496 KN
• stroke 150mm
• effective area 70.8 cm2
• oil capacity 1147 cm3
• closed height 247 mm
• extended height 397 mm
• outside diameter 123 mm
• inside diameter 95 mm
• piston rod diameter 70 mm
• weight 18 kg
• Standard saddle diameter 57.5 mm
• handle : yes
• Working pressure 700bar
• Made in China
• Designed for use in all positions
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Dust wiper on piston rod reduces contamination
• Baked enamel finish for increased corrosion resistance
• All cylinders are proof tested to 125% of capacity before leaving our factory
• 1 year After sale services
• Contact us for more information

Hydraulic Jack Cylinder

Information:

• Cylinder capacity 100 ton / 1077 KN
• stroke 150mm
• effective area 153.9 cm2
• oil capacity 2335 cm3
• closed height 282 mm
• extended height 432 mm
• outside diameter 178 mm
• inside diameter 140 mm
• piston rod diameter 100 mm
• weight 35.5 kg
• Standard saddle diameter 83 mm
• handle : yes
• Working pressure 700bar
• Made in China
• Designed for use in all positions
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Dust wiper on piston rod reduces contamination
• Baked enamel finish for increased corrosion resistance
• All cylinders are proof tested to 125% of capacity before leaving our factory
• 1 year After sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 933 kn
• Stroke 333 mm
• Collapsed Height 524 mm
• Extended Height 857 mm
• Closed mode height: 524 mm
• Return Type : Double-Acting, Hydraulic Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance 133.3cm2
• Cylinder Effective Area Retract 62.2cm2
• Oil Capacity Advance 4439cm3
• Oil Capacity Retract 2071cm3
• Weight: 93 kg
• Made in USA
• After-sale services
• Contact us for more information
