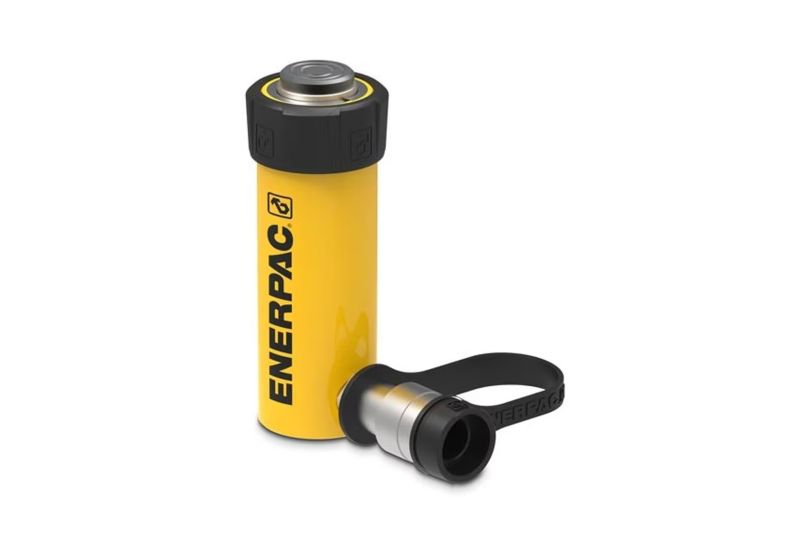

Enerpac General Purpose Cylinder Hydraulic Jack model RC 104

Enerpac General Purpose Cylinder Hydraulic Jack model RC 104

General Purpose Cylinder Hydraulic JackEnerpac RC 104

Enerpac General Purpose Cylinder Hydraulic Jack model RC 104

Brand:

انرپک - ENERPAC

Hydraulic Cylinder

Information:

A hydraulic Cylinder jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
Cylinder capacity 10 ton
Working pressure : 700 bar
single-acting
oil capacity 152 cm3
collapsed height 171 mm
extended height 276 mm
outside diameter 57 mm
Course 101 mm
weight: 3.3 kg
Made in USA
1-year after sale services
If repairing of the jack is needed call repairing department of Rastegar Sanat
For more information about the price of the jack call selling department of Rastegar Sanat

RSCO Single-acting Hollow Plunger Cylinders HCB7.5-100T

تماس بگیرید

Hydraulic Jack Information: Power: 100 tons / 946 KN stroke 75mm Effective area: 135.2 cm Oil capacity: 1015 cm3 Closed mode height: 276 mm extended height 351 mm outside diameter 212 mm inside diameter 165 mm center...

RSCO Double acting Hollow Plunger Cylinders HCD5-60T

$1,274.40

Hydraulic Cylinder Information: Power: 60 tons stroke 50 mm enter trace 562 kn return trace 377 kn Effective area enter trace : 80.3 cm2 Effective area return trace 53.8 Oil capacity enter trace : 402 cm3 Oil...

RSCO One Way Hydraulic Jack Cylinder HSB15-250T

تماس بگیرید

Hydraulic Jack Information: Cylinder capacity 250 ton / 2540 KN stroke 150mm effective area 362.9 cm2 oil capacity 10892 cm3 closed height 498 mm extended height 798 mm outside diameter 270 mm inside diameter 215 mm...

RSCO Single-acting Hollow Plunger Cylinders HCB5-30T

$806.40

Hydraulic Jack Information: Power: 30 tons / 334 KN stroke 50mm Effective area: 44.7 cm Oil capacity: 239 cm3 Closed mode height: 180 mm extended height 230 mm outside diameter 114 mm inside diameter 90 mm center...

hydraulic cylinder,
hydraulic cylinders for sale

RSCO telescope hydraulic cylinders HCT3-10

$603.00

Hydraulic Cylinder Information: To lift objects using its oil power in the tank Working range: 10 tons First-stage cylinder capacity : 665 kn Second-stage cylinder capacity : 309 kn third-stage cylinder capacity 111...

RSCo Flat Hydraulic Cylinder HJ-10 | Available in 5-200 tons

RSCo Flat Hydraulic Cylinder HJR5-10T

$378.00

Hydraulic Cylinder Information: A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects stroke 10 mm effective area 19.9 cm2 Cylinder capacity 10...

RSCo Flat Hydraulic Cylinder HJ-5 | high quality | low price

RSCo Flat Hydraulic Cylinder HJR5-5T

$286.20

Hydraulic Cylinder Information: A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects stroke 7 mm effective area 9.6 cm2 Cylinder capacity 5 ton /...

hydraulic cylinder definition,
hydraulic cylinder for sale

RSCO telescope hydraulic cylinders HCT2-10

$351.00

Hydraulic Cylinder Information: To lift objects using its oil power in the tank Working range: 10 tons First-stage power : 309 kN Second-stage power : 111 kN Maximum working pressure: 700 bars stroke of stage one,...
