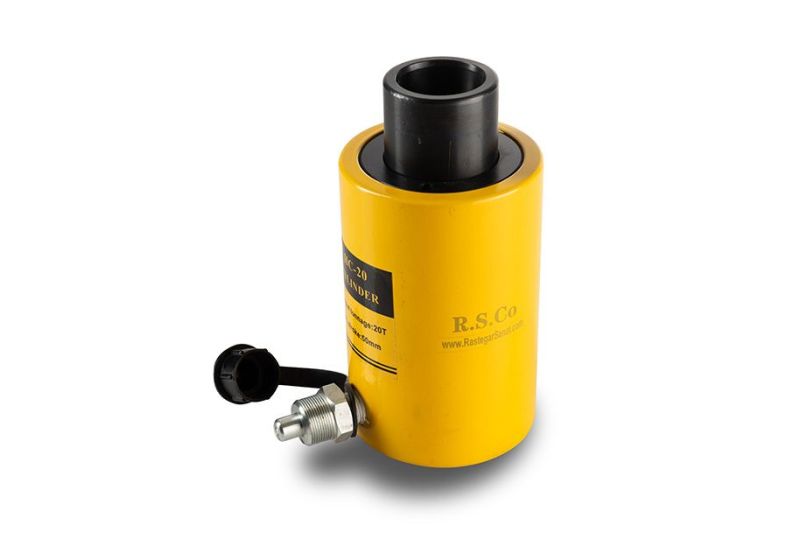

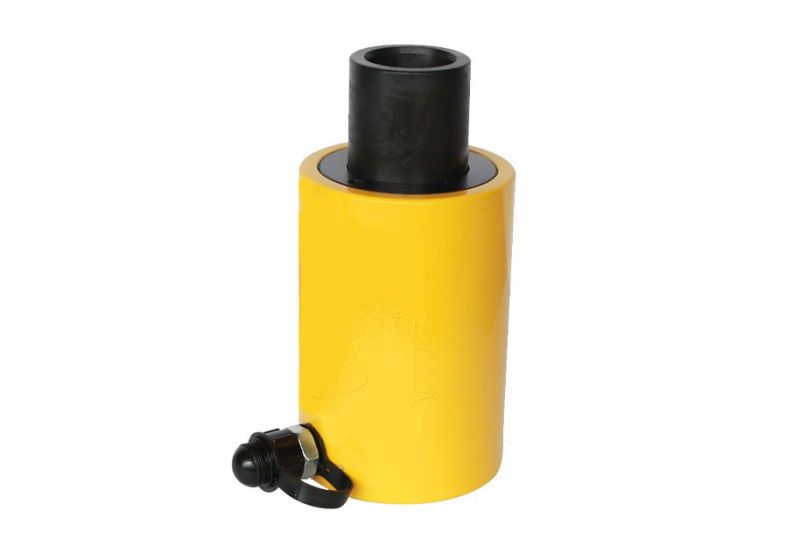

RSCO Single-acting Hollow Plunger Cylinders HCB7.5-100T

Hydraulic Jack

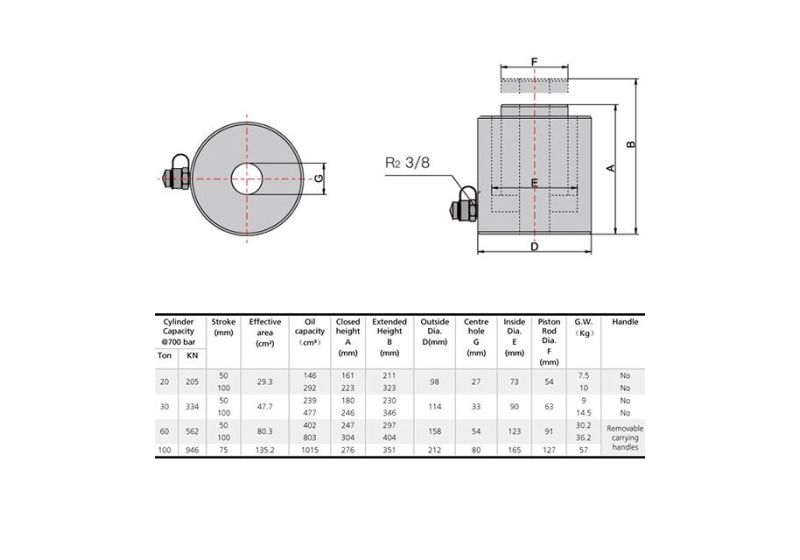

Information:

• Power: 20 tons / 205 KN
• stroke 50mm
• Effective area: 29.3 cm
• Oil capacity: 292 cm3
• Closed mode height: 223 mm
• extended height 323 mm
• outside diameter 98 mm
• inside diameter 73 mm
• center hole(G) : 27 mm
• piston rod diameter 54 mm
• Weight: 7.5 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Cylinder

Information:

• Power: 150 tons
• stroke 50 mm
• enter trace 1495 kn
• return trace 909 kn
• Effective area enter trace : 213.5 cm2
• Effective area return trace 129.9 cm2
• Oil capacity enter trace : 1118 cm3
• Oil capacity return trace 650 cm3
• Closed mode height: 217 mm
• extended height 267 mm
• outside diameter 258 mm
• inside diameter 210 mm
• piston rod diameter 166 mm
• Weight: 69.7 kg
• Made in China
• 1 year After-sale services
• Hollow plunger design allows for both push and pull forces
• Double acting, hydraulic return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Power: 30 tons / 334 KN
• stroke 50mm
• Effective area: 44.7 cm
• Oil capacity: 239 cm3
• Closed mode height: 180 mm
• extended height 230 mm
• outside diameter 114 mm
• inside diameter 90 mm
• center hole(G) : 33 mm
• piston rod diameter 63 mm
• Weight: 9 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information
