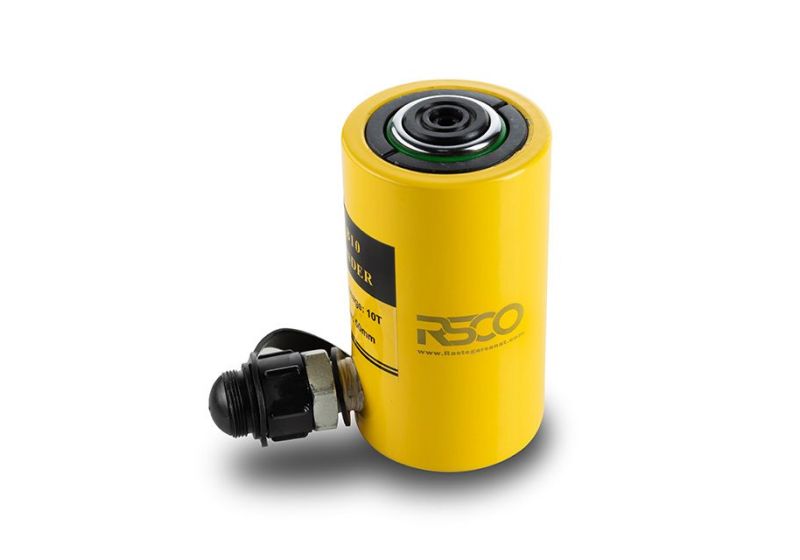

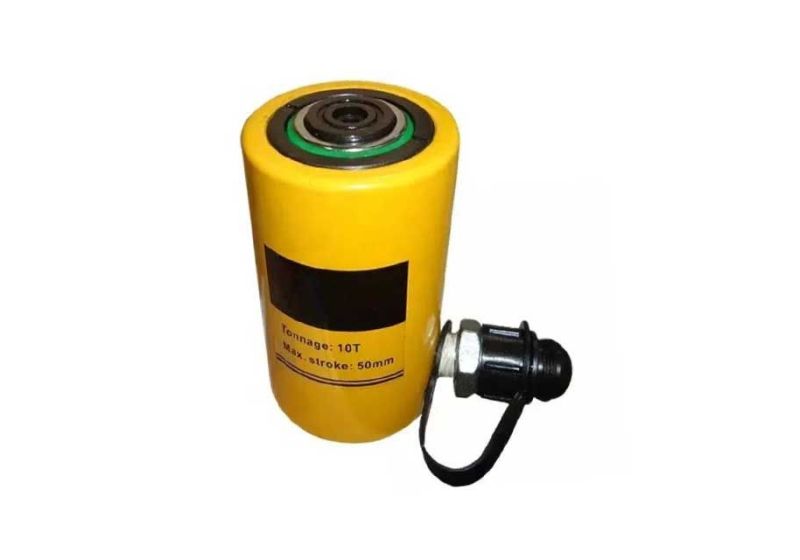

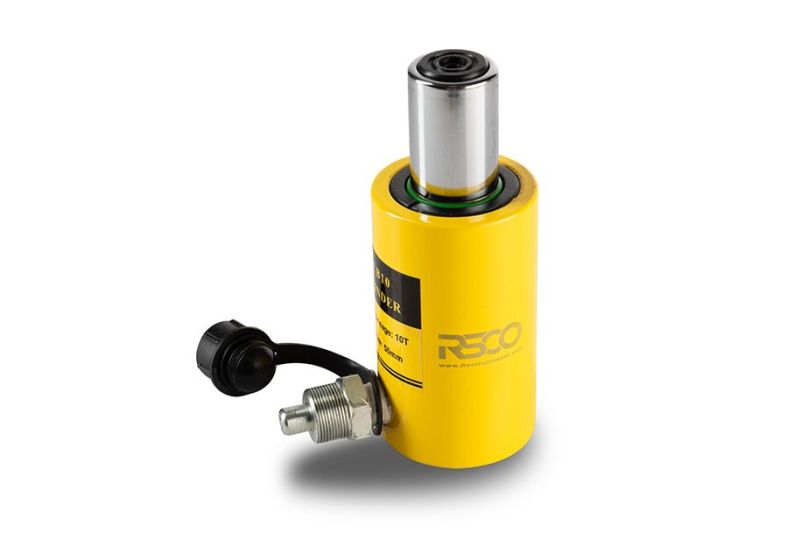

RSCO One Way Hydraulic Jack Cylinder 10 tons HSB5-10T

Hydraulic Jack Cylinder

Information:

  • Cylinder capacity 10 ton / 111 KN
  • stroke 50mm
  • effective area 15.9 cm2
  • oil capacity 85 cm3
  • closed height 122 mm
  • extended height 172 mm
  • outside diameter 68 mm
  • inside diameter 45mm
  • piston rod diameter 36mm
  • weight 3.1 kg
  • Standard saddle diameter 27.5mm
  • handle : no
  • Working pressure :700bar
  • Made in China
  • After sale services
  • Contact us for more information
Read moreShow less
$325.80
Delivery: 1 to 3 weeks

فقط 2 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
Hydraulic Jack Cylinder
Model
HSB5-10T
After-sale services
1 year
Function system
hydraulic
Maximum pressure
700bar
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
China
Weight
3.1 kg
Overall length
172 mm
Tank capacity
85cm3
نوع جک
One Way Hydraulic Jack
ظرفیت جک
10ton
Reviews (0)

No customer reviews for the moment.

You may also like
Out-of-Stock

Hydraulic Jack

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 1000 ton
  • Maximum Cylinder Capacity Advance 10644 kn
  • Stroke 250 mm
  • Collapsed Height 684 mm
  • Extended Height 934 mm
  • Return Type : Single-Acting, load Return
  • Material : steel
  • Cylinder Effective Area Advance 1520.5 cm2
  • Oil Capacity Advance 38013 cm3
  • Weight : 1360 kg
  • Made in USA
  • After-sale services
  • Contact us for more information
$379.80

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 11 mm
  • Cylinder capacity 20 ton / 198KN
  • effective area 28.3 cm2
  • oil capacity 34 cm3
  • closed height 56 mm
  • extended height 67 mm
  • outside diameter 99*76 mm
  • inside diameter 60 mm
  • piston rod diameter 50 mm
  • weight 2.7 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information
$231.30

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 7 mm
  • effective area 9.6 cm2
  • Cylinder capacity 5 ton / 67KN
  • oil capacity 7 cm3
  • closed height 40 mm
  • extended height 47 mm
  • outside diameter 64*45 mm
  • inside diameter 35 mm
  • piston rod diameter 25 mm
  • weight 0.75 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information

Out-of-Stock

Hydraulic Cylinder

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 100t
  • Maximum Cylinder Capacity Advance 933 kn
  • Stroke 333 mm
  • Collapsed Height 524 mm
  • Extended Height 857 mm
  • Closed mode height: 524 mm
  • Return Type : Double-Acting, Hydraulic Return
  • Plunger Type : Solid
  • Material : Steel
  • Cylinder Effective Area Advance 133.3cm2
  • Cylinder Effective Area Retract 62.2cm2
  • Oil Capacity Advance 4439cm3
  • Oil Capacity Retract 2071cm3
  • Weight: 93 kg
  • Made in USA
  • After-sale services
  • Contact us for more information
$522.00

Hydraulic Enerpac Jack

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 75 ton
  • Stroke 168 mm
  • Collapsed Height 357 mm
  • Extended Height 525 mm
  • Return Type : Single-Acting, Spring Return
  • Material : steel
  • Cylinder Effective Area Advance 133.3 cm2
  • Oil Capacity Advance 2239 cm3
  • Weight : 59 kg
  • Made in USA
  • After-sale services
  • If  repairing of the jack is needed call repairing department of Rastegar Sanat
  • For more information about the price of the jack call selling department of Rastegar Sanat
$198.90

Hydraulic Cylinder

Information:

  • To lift objects using its oil power in the tank
  • Working range: 10 tons
  • First-stage power : 309 kN
  • Second-stage power : 111 kN
  • Maximum working pressure: 700 bars
  • stroke of stage one, two : 135 mm
  • total stroke 270 mm
  • effective area First-stage 44.2
  • effective area Second-stage 15.9
  • Oil capacity: 810 cm
  • closed height : 250 mm
  • outside diameter 110 mm
  • inside diameter First-stage 75 mm
  • inside diameter Second-stage 45 mm
  • standard saddle diameter 45 mm
  • Weight: 18 kg
  • 1 year after service
  • Made in china
  • Single acting, load return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Each cylinder has a flat grooved saddle
  • Contact us for more information

Out-of-Stock

Hydraulic Jack

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 10 ton
  • Maximum Cylinder Capacity Advance 101 kn
  • Stroke 257 mm
  • Collapsed Height 349 mm
  • Extended Height 606 mm
  • Return Type : Single-Acting, Spring Return
  • Material : steel
  • Cylinder Effective Area Advance 14.4 cm2
  • Oil Capacity Advance 373 cm3
  • Weight : 6.4 kg
  • Made in USA
  • After-sale services
  • Contact us for more information
Out-of-Stock

Hydraulic Jack

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 5 ton
  • Maximum Cylinder Capacity Advance 45kn
  • Stroke 177mm
  • Collapsed Height 273mm
  • Extended Height 450 mm
  • Return Type : Single-Acting, Spring Return
  • Material : steel
  • Cylinder Effective Area Advance 6.4 cm2
  • Oil Capacity Advance 115 cm3
  • Weight : 2.4 kg
  • Made in USA
  • After-sale services
  • Contact us for more information
