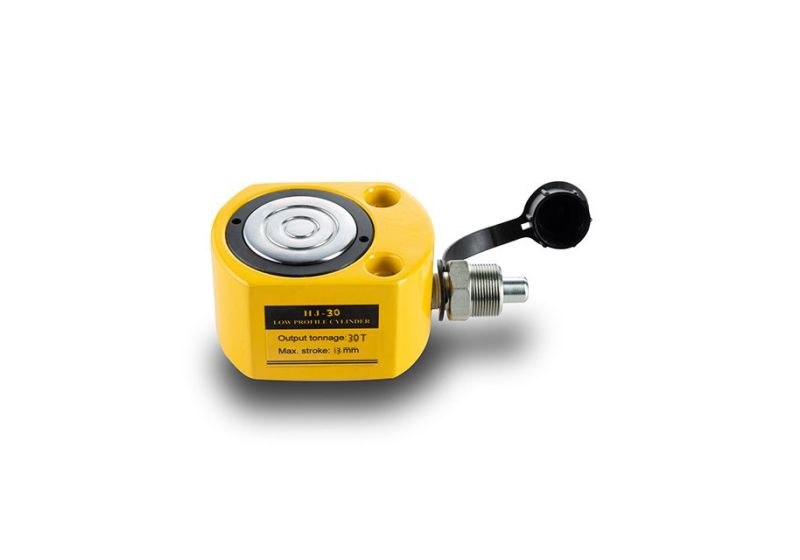

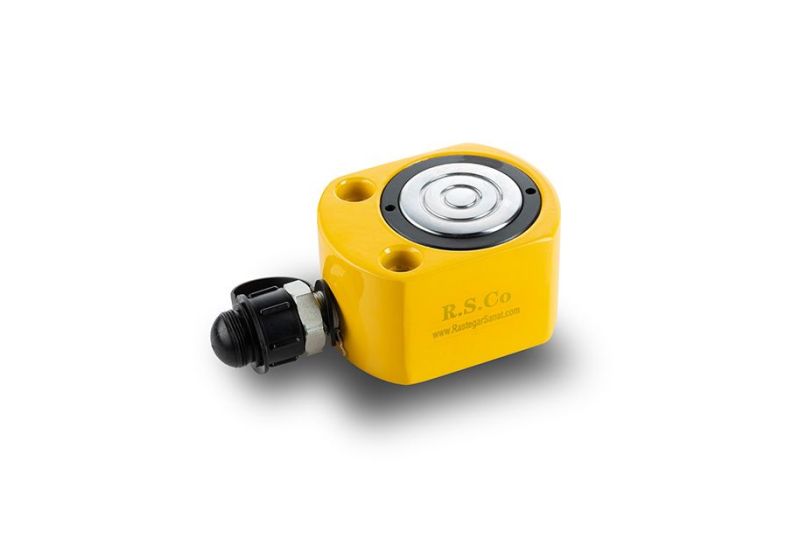

RSCo Flat Hydraulic Jack HJR5-30T

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 13 mm
  • Cylinder capacity 30 ton / 309KN
  • effective area 9.6 cm2
  • oil capacity 55 cm3
  • closed height 62 mm
  • extended height 75 mm
  • outside diameter 123*98 mm
  • inside diameter 75 mm
  • piston rod diameter 64 mm
  • weight 4.6 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information

Read moreShow less
Product Details

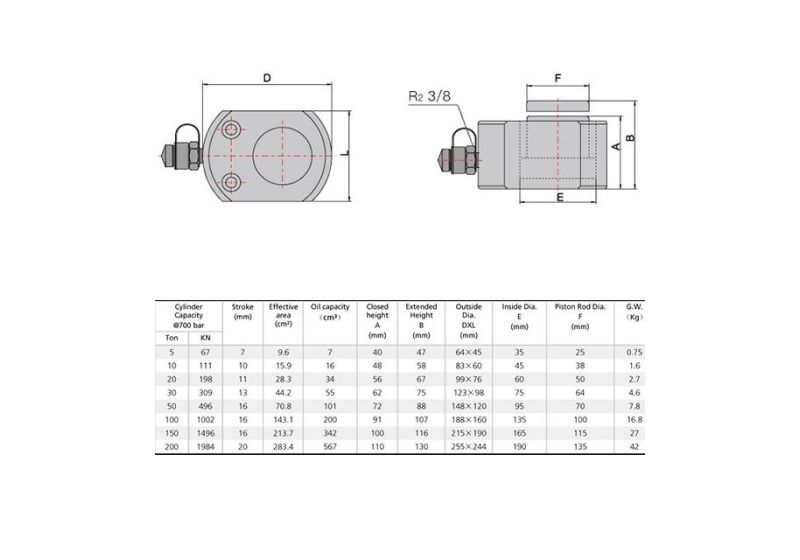

Data sheet

Name
Hydraulic jack
Model
HJR5-30T
After-sale services
1 year
Function system
Hydraulic
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Weight
4.6 kg
Overall length
75 mm
Tank capacity
55 ml
نوع جک
Flat Hydraulic Cylinder
ظرفیت جک
30T
Reviews (0)

No customer reviews for the moment.

You may also like
Out-of-Stock

Hydraulic Cylinder

Information:

  • To lift up objects using its oil power in tank
  • Lifting weight: 50 tons
  • Oil tank capacity: 170 Square centimeters
  • Maximum working pressure: 700 bar
  • Length in closed mode: 67 mm
  • Length in open mode: 82 mm
  • External diameter: 140 mm
  • Weight: 6.6 kg
  • Made in USA
  • Contact us for more information
Out-of-Stock

Hydraulic Cylinder

Information:

  • To lift up objects using its oil power in tank
  • Lifting weight: 75 tons
  • Available in 10-150 tons
  • Oil tank capacity: 187 mm
  • Length in closed mode: 79 mm
  • Length in open mode: 96 mm
  • Shaft diameter: 100 mm
  • Weight:12.7 kg
  • Made in China
  • Contact us for more information
$280.80

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 10 mm
  • effective area 19.9 cm2
  • Cylinder capacity 10 ton / 111KN
  • oil capacity 16 cm3
  • closed height 48 mm
  • extended height 58 mm
  • outside diameter 83*60 mm
  • inside diameter 45 mm
  • piston rod diameter 38 mm
  • weight 1.6 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information
$231.30

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 7 mm
  • effective area 9.6 cm2
  • Cylinder capacity 5 ton / 67KN
  • oil capacity 7 cm3
  • closed height 40 mm
  • extended height 47 mm
  • outside diameter 64*45 mm
  • inside diameter 35 mm
  • piston rod diameter 25 mm
  • weight 0.75 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information

Out-of-Stock

Hydraulic Cylinder

Information:

  • To lift up objects using its oil power in tank
  • Lifting weight: 100 tons
  • Oil tank capacity: 200 cc
  • Length in closed mode: 92 mm
  • Length in open mode: 100 mm
  • Dimensions: 10*17*25 cm
  • Weight: 14 kg
  • Made in China
  • Contact us for more information
$467.82

Hydraulic Jack

Information:

  • Maximum Operating Pressure 700 bar
  • Capacity Class 5 ton
  • Maximum Cylinder Capacity Advance 550 kn
  • Stroke 150 mm
  • Collapsed Height 264 mm
  • Extended Height 414 mm
  • Return Type : Single-Acting, load Return
  • Material : steel
  • Cylinder Effective Area Advance 78,5 cm2
  • Oil Capacity Advance 1178 cm3
  • Weight : 27 kg
  • Made in USA
  • After-sale services
  • Contact us for more information
Out-of-Stock

Hydraulic Jack

Information:

  • To lift objects using oil power in the tank
  • Maximum working power: 100 tons
  • Working pressure: 42.2 Mpa
  • Available in 100-6000 tons
  • Lifting size: 41 mm
  • Length when the shaft is closed: 330 mm
  • High build quality
  • External diameter: 146 mm
  • Weight: 33 kg
  • Made in China
  • Contact us for more information
$198.90

Hydraulic Cylinder

Information:

  • To lift objects using its oil power in the tank
  • Working range: 10 tons
  • First-stage power : 309 kN
  • Second-stage power : 111 kN
  • Maximum working pressure: 700 bars
  • stroke of stage one, two : 135 mm
  • total stroke 270 mm
  • effective area First-stage 44.2
  • effective area Second-stage 15.9
  • Oil capacity: 810 cm
  • closed height : 250 mm
  • outside diameter 110 mm
  • inside diameter First-stage 75 mm
  • inside diameter Second-stage 45 mm
  • standard saddle diameter 45 mm
  • Weight: 18 kg
  • 1 year after service
  • Made in china
  • Single acting, load return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Each cylinder has a flat grooved saddle
  • Contact us for more information
