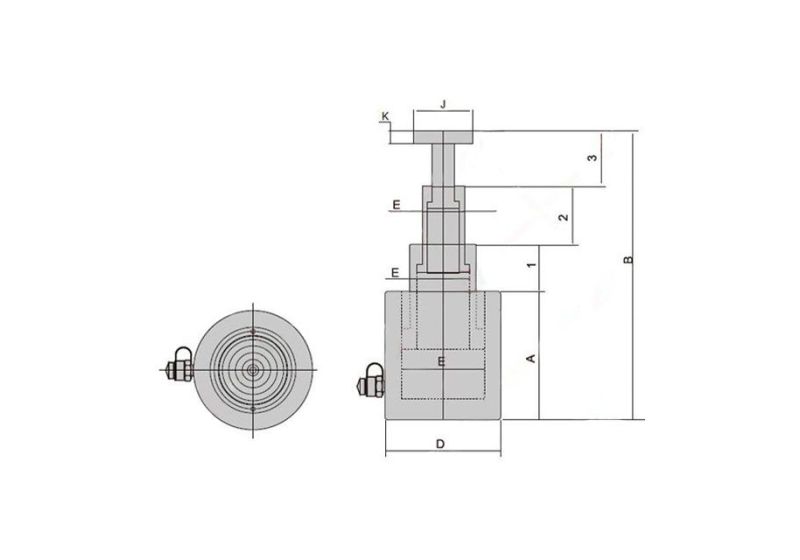

RSCO telescope hydraulic cylinders HCT3-10

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage cylinder capacity : 665 kn
• Second-stage cylinder capacity : 309 kn
• third-stage cylinder capacity 111 kn
• Maximum working pressure: 700 bars
• stroke of stage one, two,three : 135 mm
• total stroke 435 mm
• effective area First-stage 95 cm2
• effective area Second-stage 44.2 cm2
• effective area third-stage 15.9cm2
• Oil capacity: 2250 cm
• closed height : 280 mm
• outside diameter 153 mm
• inside diameter First-stage 110 mm
• inside diameter Second-stage 75 mm
• inside diameter third-stage 45 mm
• standard saddle diameter 78 mm
• Weight: 40 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
