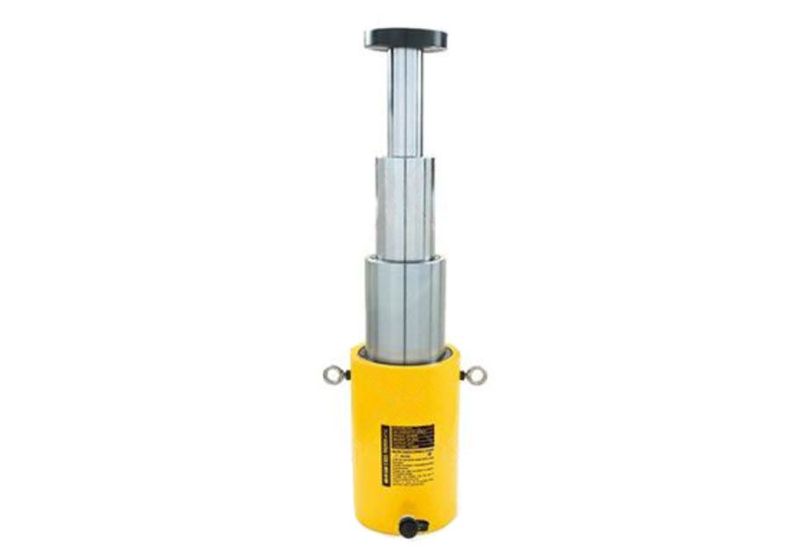

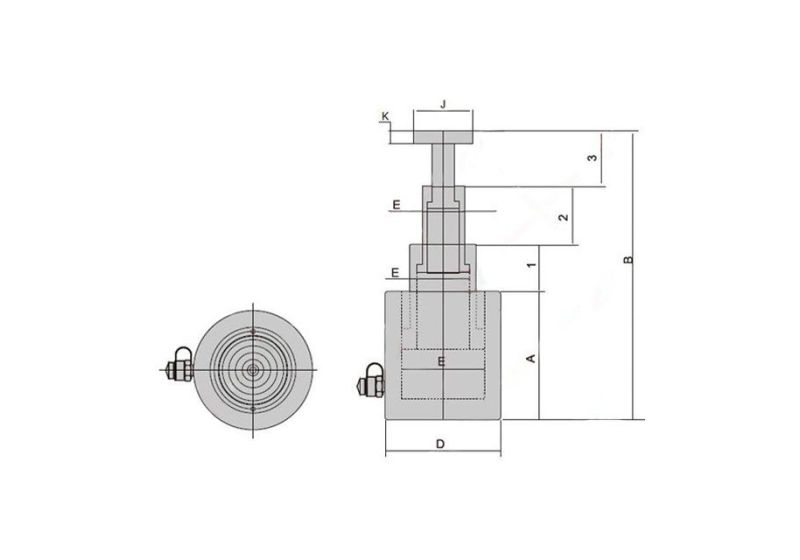

RSCO telescope hydraulic cylinders HCT3-15

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 75 tons
• Available in 10-150 tons
• Oil tank capacity: 187 mm
• Length in closed mode: 79 mm
• Length in open mode: 96 mm
• Shaft diameter: 100 mm
• Weight:12.7 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 933 kn
• Stroke 333 mm
• Collapsed Height 524 mm
• Extended Height 857 mm
• Closed mode height: 524 mm
• Return Type : Double-Acting, Hydraulic Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance 133.3cm2
• Cylinder Effective Area Retract 62.2cm2
• Oil Capacity Advance 4439cm3
• Oil Capacity Retract 2071cm3
• Weight: 93 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Can be used for all situations
• Made of high strength aluminum
• Working power: 200 tons
• Oil tank capacity: 7297 cm
• High build quality
• Maximum working pressure: 700 bars
• Height when the shaft is closed: 463 mm
• Total length: 713 mm
• Chrome plated to prevent corrosion and wear
• External diameter size: 270 mm
• Weight: 74.8 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Maximum working pressure: 700 bar
• Lifting weight: 200 tons
• Oil tank capacity: 4.33 L
• Length when the shaft is closed: 362 mm
• Designed for use in all situations
• External diameter: 135 mm
• Weight: 137 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Maximum working pressure: 700 bar
• Lifting weight: 20 tons
• Oil tank capacity: 56 Square centimeters
• Length when the shaft is closed: 102 mm
• Designed for use in all situations
• Weight: 4.8 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 10 ton
• Maximum Cylinder Capacity Advance 101 kn
• Stroke 257 mm
• Collapsed Height 349 mm
• Extended Height 606 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 14.4 cm2
• Oil Capacity Advance 373 cm3
• Weight : 6.4 kg
• Made in USA
• After-sale services
• Contact us for more information
