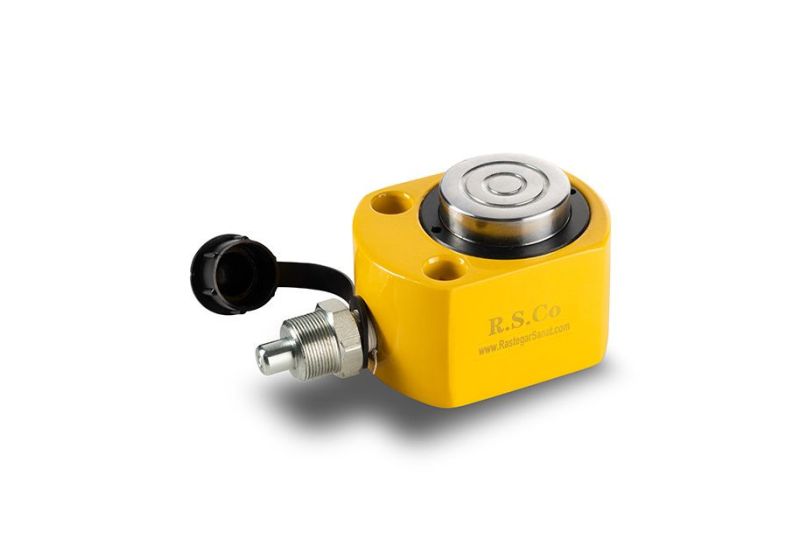

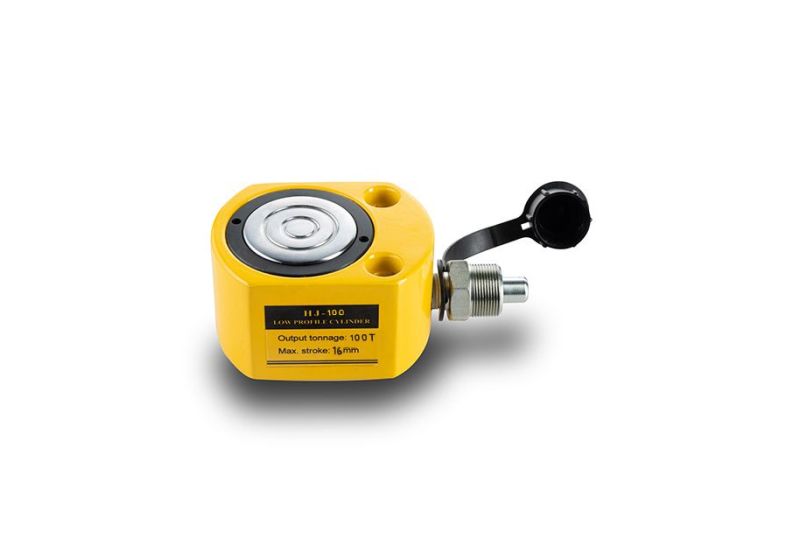

RSCo Flat Hydraulic Cylinder HJR5-100 T

Hydraulic Cylinder

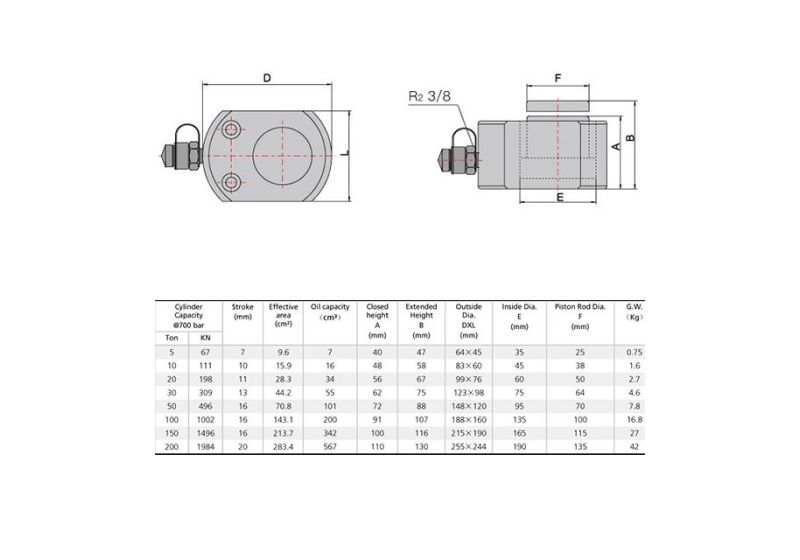

Information:

  • stroke 16 mm
  • effective area 143.1 cm2
  • Cylinder capacity 100 ton / 1002KN
  • oil capacity 200 cm3
  • closed height 91 mm
  • extended height 107 mm
  • outside diameter 188*160 mm
  • inside diameter 135 mm
  • piston rod diameter 100 mm
  • weight 16.8 kg
  • Working pressure :700bar
  • Compact, flat design for use in confined spaces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Chrome plated piston resists wear and corrosion
  • Baked enamel finish for increased corrosion resistance
  • Grooved piston rods require no saddle
  • Mounting holes permit easy fixturing
  • Cylinder bores are roller burnished to harden the surface and make
    it smoother
  • 1-year after sale services
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
Hydraulic Cylinder
Model
HJR5-100 T
After-sale services
1 year
Function system
Hydraulic
Warranty
YES
Quality rating by Rastegar Sanat from 0 to 100
75
Weight
16.8 kg
Overall length
107 mm
Tank capacity
200 ml
نوع جک
Flat Hydraulic Cylinder
ظرفیت جک
100T
Reviews (0)

No customer reviews for the moment.
