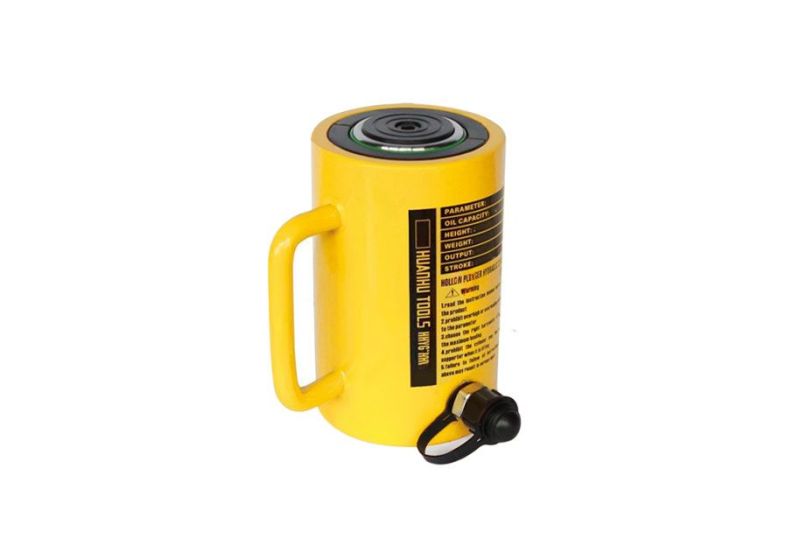

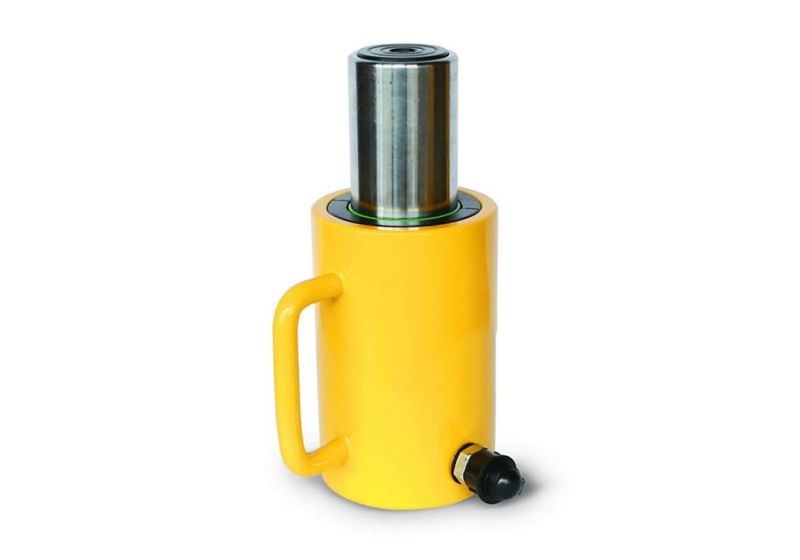

RSCO One Way Hydraulic Jack Cylinder HSB15-50T

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 11 mm
• Cylinder capacity 20 ton / 198KN
• effective area 28.3 cm2
• oil capacity 34 cm3
• closed height 56 mm
• extended height 67 mm
• outside diameter 99*76 mm
• inside diameter 60 mm
• piston rod diameter 50 mm
• weight 2.7 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 933 kn
• Stroke 333 mm
• Collapsed Height 524 mm
• Extended Height 857 mm
• Closed mode height: 524 mm
• Return Type : Double-Acting, Hydraulic Return
• Plunger Type : Solid
• Material : Steel
• Cylinder Effective Area Advance 133.3cm2
• Cylinder Effective Area Retract 62.2cm2
• Oil Capacity Advance 4439cm3
• Oil Capacity Retract 2071cm3
• Weight: 93 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Enerpac Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 75 ton
• Stroke 168 mm
• Collapsed Height 357 mm
• Extended Height 525 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 133.3 cm2
• Oil Capacity Advance 2239 cm3
• Weight : 59 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 10 ton
• Maximum Cylinder Capacity Advance 101 kn
• Stroke 257 mm
• Collapsed Height 349 mm
• Extended Height 606 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 14.4 cm2
• Oil Capacity Advance 373 cm3
• Weight : 6.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 45kn
• Stroke 177mm
• Collapsed Height 273mm
• Extended Height 450 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 6.4 cm2
• Oil Capacity Advance 115 cm3
• Weight : 2.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50 ton
• Maximum Cylinder Capacity Advance 498 kn
• Stroke 51mm
• Collapsed Height 176 mm
• Extended Height 227 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 71.3 cm2
• Oil Capacity Advance 362 cm3
• Weight : 15 kg
• Made in USA
• After-sale services
• Contact us for more information
