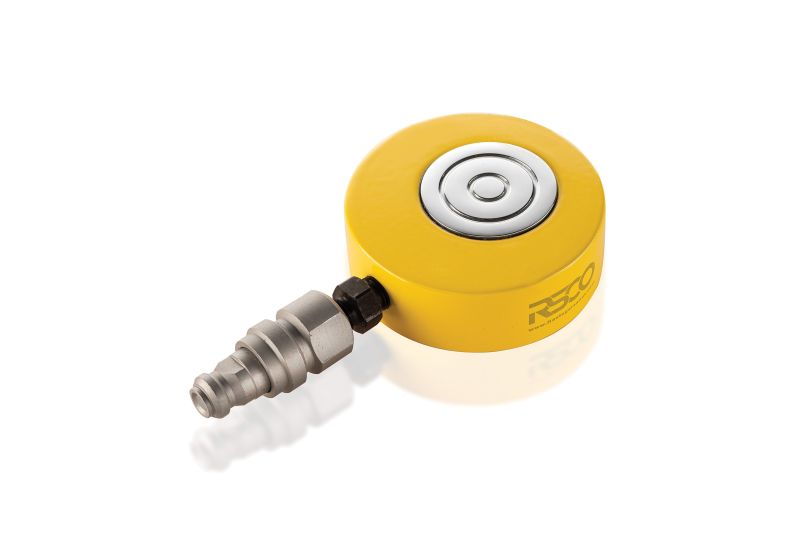

RSCo Ultra Flat cylinder HJS-35

Hydraulic Cylinder

Information:

  • A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • stroke 15 mm
  • Cylinder capacity 35 ton / 35.16KN
  • effective area 50.2 cm2
  • oil capacity 75 cm3
  • closed height 35 mm
  • extended height 50 mm
  • outside diameter 150 mm
  • inside diameter 80 mm
  • piston rod diameter 80 mm
  • weight 5 kg
  • Working pressure :700bar
  • piston rod diameter 80 mm
  • Bottom to advance port 17.5 mm
  • single-acting , gravity-return
  • Extremely low collapsed height
  • Each cylinder comes with a 3/8 NPT female coupler
  • 1-year after sale services
  • Contact us for more information

Read moreShow less
Product Details

Data sheet

Name
Hydraulic jack
Model
HJS-35
After-sale services
1 year
Function system
Hydraulic
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Weight
5 kg
Overall length
50 mm
Tank capacity
75 ml
نوع جک
Flat Hydraulic Cylinder
ظرفیت جک
35T
Reviews (0)

No customer reviews for the moment.
