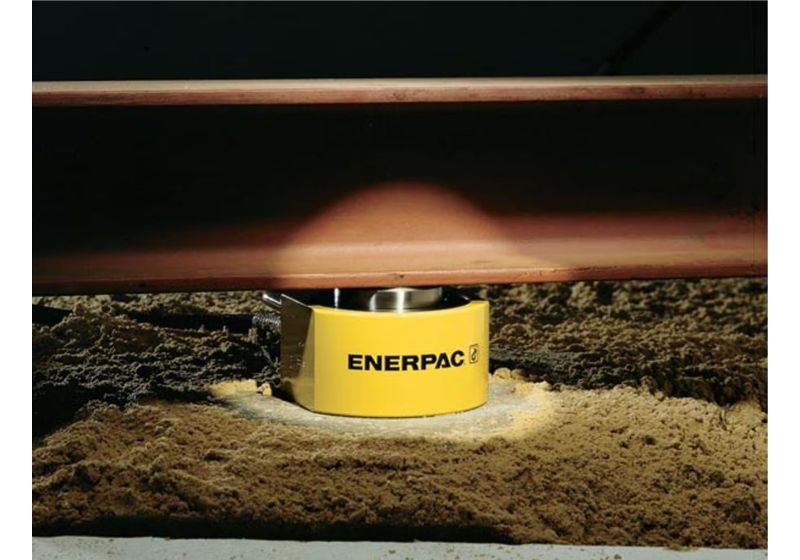

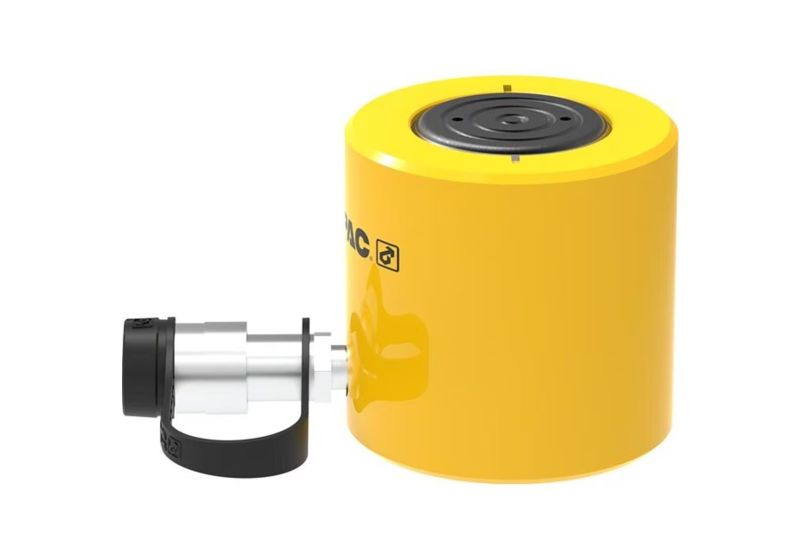

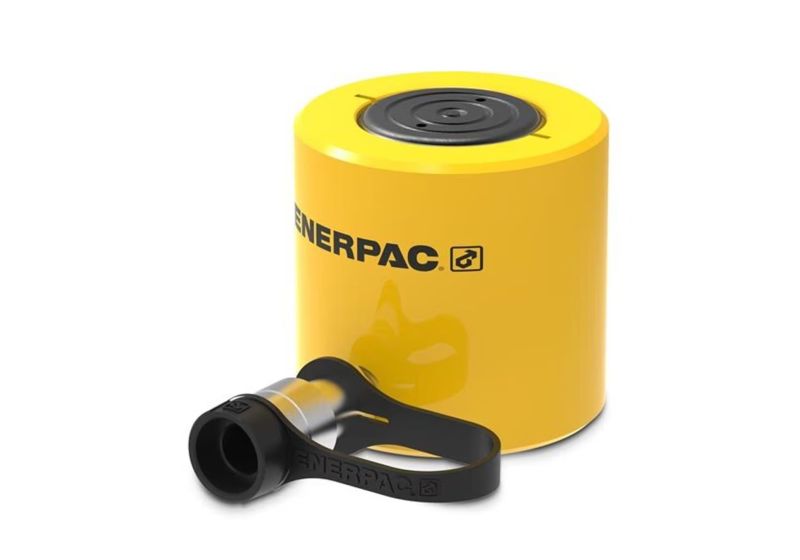

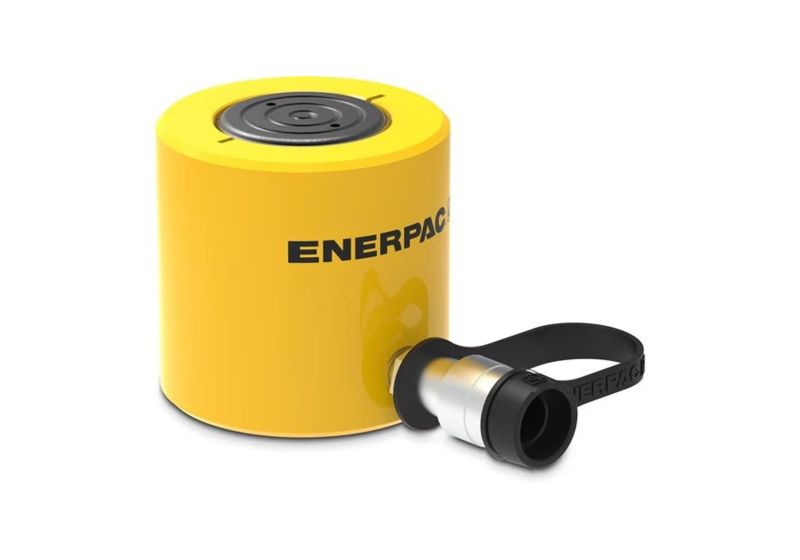

Enerpac Low Height Cylinder Hydraulic Jack model RCS-502

Hydraulic Cylinder

Information:

  • A hydraulic Cylinder jack  is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
  • Cylinder capacity 45 ton
  • Working pressure : 700 bar
  • single-acting
  • oil capacity 373 cm3
  • closed height 122 mm
  • extended height 182 mm
  • outside diameter 69.8 mm
  • Course mm 60 mm
  • Distance between two holes 50 mm (U)
  • weight: 10 kg
  • Extremely low collapsed height
  • 1-year after sale services
  • If  repairing of the jack is needed call repairing department of Rastegar Sanat
  • For more information about the price of the jack call selling department of Rastegar Sanat

Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
Description

Cylinder hydraulic jack

A cylinder hydraulic jack is a powerful tool used for lifting heavy loads by applying force through a hydraulic cylinder. The main component of this jack is the cylinder, which houses hydraulic fluid and a piston. When the hydraulic fluid is pressurized, it pushes the piston upward, creating a lifting force. This mechanism allows the jack to lift heavy objects with minimal effort, making it an essential tool in various industries such as automotive repair, construction, and manufacturing.

How hydraulic jack works?

The operation of a cylinder hydraulic jack is based on Pascal’s Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. In the context of a hydraulic jack, this means that a small force applied to the hydraulic fluid in a small cylinder can generate a much larger force in a larger cylinder. This principle allows the jack to lift heavy loads with a relatively small input force. The hydraulic fluid, usually oil, is pumped into the cylinder using a manual or powered pump, creating the necessary pressure to lift the load.

Size of the hydraulic jacks

Cylinder hydraulic jacks come in various sizes and capacities, ranging from small, portable models used for vehicle maintenance to large, industrial-grade jacks capable of lifting several tons. The design of these jacks can also vary, with some featuring single-acting cylinders that only lift the load, while others have double-acting cylinders that can both lift and lower the load. The choice of jack depends on the specific requirements of the task at hand, including the weight of the load and the available space for operation.

Safety of working with hydraulic jacks

Safety is a critical consideration when using cylinder hydraulic jacks. Proper maintenance of the hydraulic system, including regular checks for leaks and ensuring the hydraulic fluid is at the correct level, is essential to prevent accidents. Additionally, users should always follow the manufacturer’s guidelines for safe operation, including using the jack on a stable, level surface and never exceeding its rated capacity. By adhering to these safety practices, users can ensure the efficient and safe use of cylinder hydraulic jacks in their various applications.



Read moreShow less
Product Details

Data sheet

Name
Hydraulic Cylinder jack
Model
RCS-502
After-sale services
1 year
Function system
Hydraulic
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Weight
10 kg
Overall length
122 mm
Tank capacity
373 ml
نوع جک
Hydrolic Cylinder Jack
ظرفیت جک
45 T
Reviews (0)

No customer reviews for the moment.
